| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Dimensions | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Material | |
| Mounting Type | |
| Number of Bands | |
| Polarization | |
| RF Family | |
| Return Loss | |
| Storage Temperature | |
| Termination | |
| VSWR | |
| Weight |

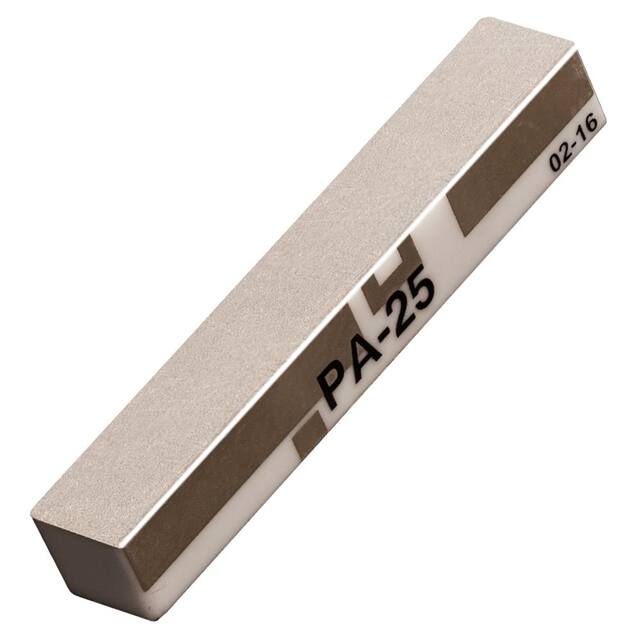

The Taoglas PA.25A is a compact, high-efficiency ceramic cellular antenna designed for surface mount (SMD) applications. It operates across a wide frequency range from 800 MHz to 2200 MHz, covering essential 3G and 2G cellular bands.
This antenna features a small form factor of 35x5x6mm and is manufactured using high-grade ceramics. It offers typical impedance of 50 Ohms and linear polarization. The gain varies across its operating frequencies, reaching up to 4.62 dBi.
Typical applications for the PA.25A include body-worn devices, hand-held IoT devices, medical devices, and remote monitoring systems. It is manufactured in an IATF16949 approved facility and is RoHS & REACH compliant.
The PA.25A is delivered on tape and reel for efficient SMD processing. Integration guidance is available in the manufacturer's application note.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PA.25A antenna operates in the frequency range of 824-960 MHz and 1710-2200 MHz.
The peak gain of the PA.25A antenna can reach up to 4.62 dBi.
The dimensions of the PA.25A antenna are 35mm x 5mm x 6mm.
The PA.25A antenna is a surface mount device.
The operating temperature range for the PA.25A antenna is -40°C to 85°C.
