| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

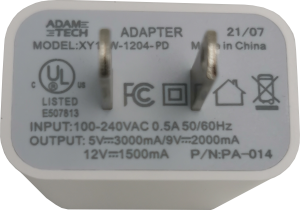

The Adam Technologies Inc PA-014 is a versatile AC/DC wall mount adapter suitable for ITE (Commercial) applications. This Class II device offers multiple output voltage options of 5V, 9V, and 12V, with corresponding current ratings of 3A, 2A, and 1.5A. It utilizes a standard NEMA 1-15P input connector and provides a USB C receptacle for output.
The adapter operates within a temperature range of -10°C to 40°C and is designed for wall mounting. Its dimensions are 48.2mm in length, 42.4mm in width, and 26.4mm in height. The PA-014 is approved by cULus, ensuring compliance with safety standards for North American usage.
This adapter is ideal for powering various electronic devices that require stable DC power from an AC source. Its compact and wall-mountable form factor makes it convenient for use in office or home environments.
The PA-014 adapter offers output voltages of 5V, 9V, and 12V.
The adapter provides current ratings of 3A, 2A, and 1.5A corresponding to the output voltages.
The PA-014 adapter uses a NEMA 1-15P input connector.
The PA-014 adapter features a USB C receptacle for output.
The PA-014 adapter operates within a temperature range of -10°C to 40°C.
The dimensions of the PA-014 adapter are 48.2mm in length, 42.4mm in width, and 26.4mm in height.
The PA-014 adapter is approved by cULus.
