| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Region Utilized | |
| Voltage | |
| Width |

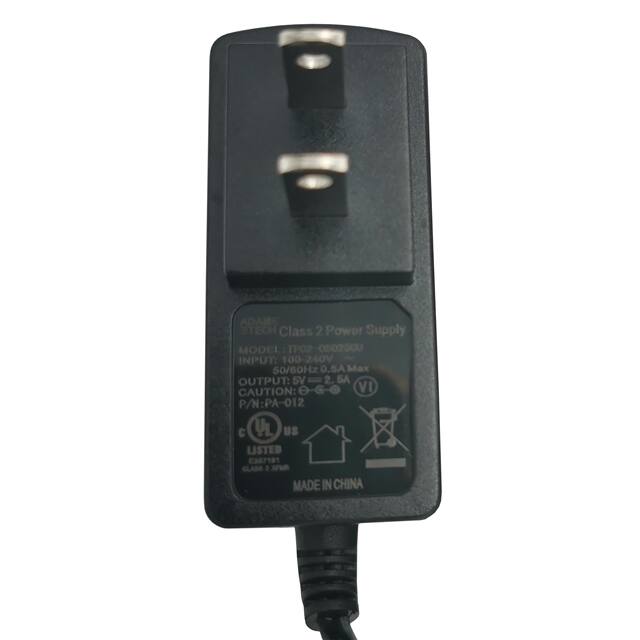

The Adam Technologies Inc PA-012 is an AC/DC wall mount adapter providing a 5V output with a 2.5A current rating. Designed for ITE (Commercial) applications, it utilizes a NEMA 1-15P input connector and a barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm).
This adapter operates within a temperature range of 0°C to 40°C and meets Level VI efficiency standards. It has received cULus approval, ensuring compliance with safety regulations for North American markets. The unit is a Class II, wall mount type with a cord length of 59 inches (1.50m).
Physical dimensions are 60.0mm in length, 44.0mm in width, and 20.0mm in height. The PA-012 series adapter is RoHS3 compliant and has an MSL rating of 1 Unlimited.
5V DC.
2.5A.
NEMA 1-15P.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
0°C to 40°C.
Level VI.
cULus.
