| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Region Utilized | |
| Voltage | |
| Width |

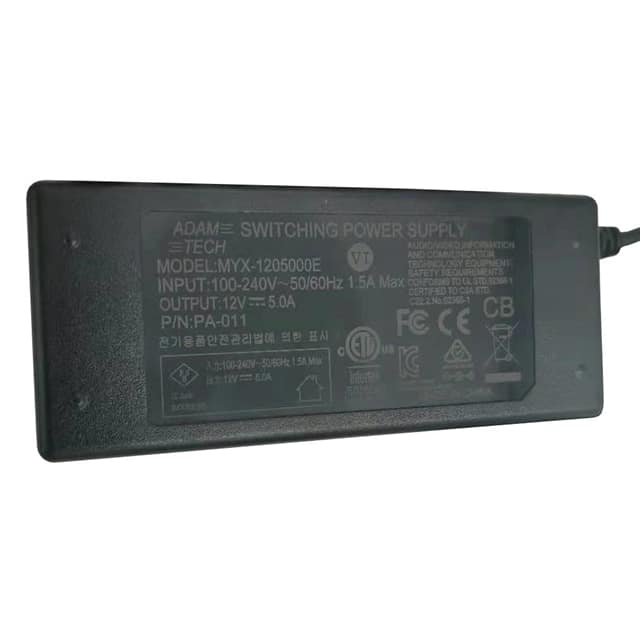

The Adam Technologies PA-011 is a versatile AC/DC wall mount adapter designed for ITE Commercial applications. This adapter provides a stable 12V output with a current capacity of 5A, making it suitable for a variety of electronic devices.
It features an IEC 320-C6 input connector, allowing for easy connection to standard power cords. The adapter's form factor is a Wall Mount (Class II) type, with dimensions of 119.5mm in length, 51.0mm in width, and 33.0mm in height. The operating temperature range is from -20°C to 40°C.
This adapter is approved by multiple agencies including CB, CE, cULus, FCC, KC, and PSE, ensuring compliance with international standards. The input type is a cord, which is sold separately, and the cord length is specified at 47.2 inches (1.20m). The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The PA-011 adapter has an output voltage of 12V.
The PA-011 adapter has a maximum current rating of 5A.
The PA-011 uses an IEC 320-C6 input connector.
The PA-011 adapter measures 119.5mm in length, 51.0mm in width, and 33.0mm in height.
The PA-011 operates within a temperature range of -20°C to 40°C.
The PA-011 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PA-011 is 1 Unlimited.
