Mfr Part #:

PA-010

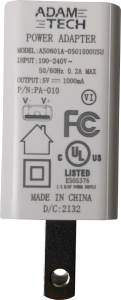

The Adam Tech PA-010 is a 5V, 1A AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a NEMA 1-15P input and a USB A receptacle output.

Stock on Request

PA-010 Description

Short technical summary and product information.

The Adam Tech PA-010 is an AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 5V output with a current rating of 1A, ensuring reliable power delivery.

The adapter features a NEMA 1-15P input connector and a USB A receptacle output, making it versatile for various devices. It operates within a temperature range of 0°C to 45°C and meets Level VI efficiency standards.

Designed as a Class II wall mount unit, the PA-010 offers a compact form factor with dimensions of 36.0mm x 20.8mm x 36.0mm. It is approved by cULus and FCC for safety and performance in North American markets.

PA-010 Quick Information

Product Type: AC DC Desktop, Wall Adapters

Canonical Name: Adam Technologies Inc PA-010 AC/DC Wall Mount Adapter

Subcategory: Wall Mount Adapters

PA-010 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PA-010 Features

Provides 5V output at 1A current.
Features NEMA 1-15P input connector.
Includes USB A receptacle output.
Meets Level VI efficiency standards.
Operates from 0°C to 45°C.

PA-010 Applications

Suitable for ITE (Commercial) applications.
Ideal for powering USB-compatible devices.
Designed for North American power regions.
Compact wall mount form factor.

PA-010 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the PA-010?

100-240 VAC.

What output voltage and current does the PA-010 provide?

5V DC at 1A.

What efficiency rating does the PA-010 have?

Level VI.

What output connector does the PA-010 use?

USB A Receptacle.

What are the physical dimensions of the PA-010?

36.0mm x 20.8mm x 36.0mm.

What is the operating temperature range of the PA-010?

0°C to 45°C.

Is the PA-010 safety approved?

Yes, cULus and FCC approved.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Adam Technologies Inc
AEC Qualified	No
Applications	ITE (Commercial)
Approval Agency	cULus, FCC
Automotive Grade	No
Current	1A
Efficiency	Level VI
Form	Wall Mount (Class II)
Height	36.0mm (1.42")
Industrial Grade	No
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Length	36.0mm (1.42")
Medical Grade	No
Military Grade	No
Operating Temperature	0°C ~ 45°C
Output Connector	USB A Receptacle
Region Utilized	North America
Voltage	100-240 VAC
Width	20.8mm (0.82")
