| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Region Utilized | |
| Voltage | |
| Width |

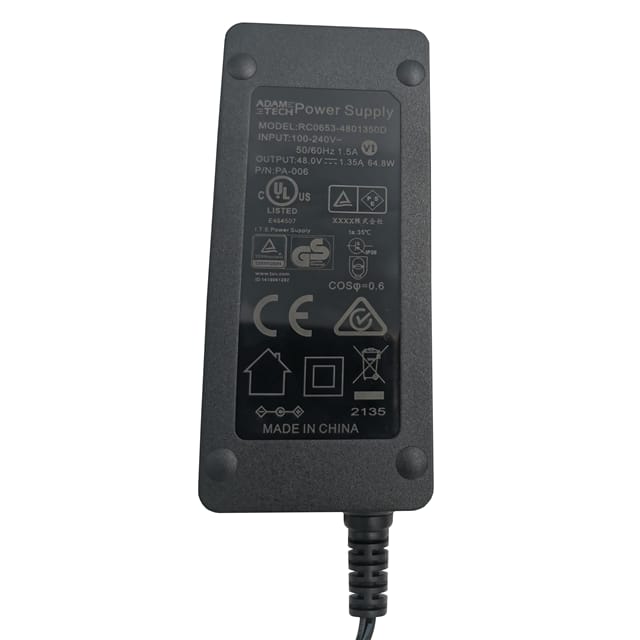

The Adam Technologies PA-006 is an AC/DC wall mount adapter, classified as a Class II device, suitable for ITE (Commercial) applications. It operates with an input voltage and provides a stable 48V output at 1.35A. This adapter meets Level VI efficiency standards, ensuring energy conservation.
The unit features an IEC 320-C7 input connector and a common barrel plug output with dimensions of 2.5mm I.D. x 5.5mm O.D. x 9.5mm. Its physical dimensions are 115.6mm in length, 33.0mm in width, and 34.0mm in height. The cord length is approximately 59 inches (1.50m). The operating temperature range for this adapter is from 0°C to 45°C.
Compliance is indicated by CE, cULus, GS, PSE, and TUV approvals. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life under standard conditions. REACH status is unaffected.
The PA-006 adapter provides a 48V output voltage and a 1.35A current.
The PA-006 adapter uses an IEC 320-C7 input connector.
The output barrel plug has a 2.5mm I.D. x 5.5mm O.D. x 9.5mm size.
The PA-006 adapter can operate in temperatures ranging from 0°C to 45°C.
Yes, the PA-006 adapter meets Level VI efficiency standards.
The PA-006 adapter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PA-006 adapter is 1.
