| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Connector | |
| Region Utilized | |
| Voltage | |
| Width |

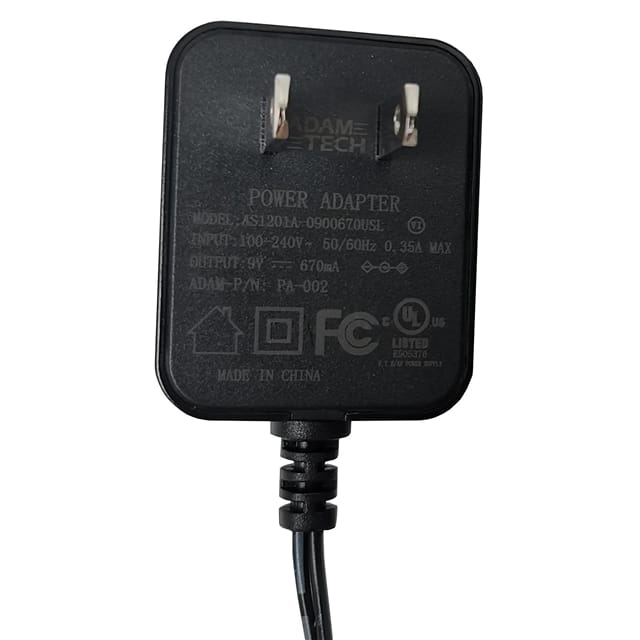

This AC/DC wall mount adapter from Adam Tech, part number PA-002, provides a stable 9V output with a current rating of 670mA. It is designed for ITE (Commercial) applications and meets Level VI efficiency standards.
The adapter features a NEMA 1-15P input connector suitable for North American outlets and a standard barrel plug output with dimensions of 2.5mm inner diameter and 5.5mm outer diameter, with a 9.5mm length. The unit is a Class II, wall-mountable device, offering a convenient power solution.
With an operating temperature range of 0°C to 40°C, the PA-002 is suitable for various environments. Its dimensions are 44.0mm in length, 35.6mm in width, and 25.0mm in height. The cord length is approximately 59 inches (1.50 meters).
9V DC.
670mA.
NEMA 1-15P fixed blade.
Barrel plug with 2.5mm inner diameter and 5.5mm outer diameter.
Level VI.
0°C to 40°C.
cULus and FCC.
