P9035-0NTGI
Renesas
The Renesas P9035-0NTGI is a highly integrated IC designed for WPC-compliant wireless power transmitter applications. It operates at 5V and supports a switching frequency range of 110kHz to 205kHz.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140,000 pcs
|
140000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Duty Cycle | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Voltage |
The Renesas P9035-0NTGI8 is a single-chip wireless power transmitter IC designed for WPC-compliant power transmitter applications (A5/A11). It operates from a 5V (±5%) input voltage and utilizes a full-bridge inverter. The device controls power transfer by modulating the switching frequency between 110kHz and 205kHz at a fixed 50% duty cycle.
Key features include closed-loop power transfer control, demodulation and decoding of WPC-compliant message packets, and proprietary back-channel communication. It also incorporates over-temperature/current protection and foreign object detection (FOD) for enhanced safety. The IC supports security and encryption up to 64 bits when paired with compatible receiver solutions.

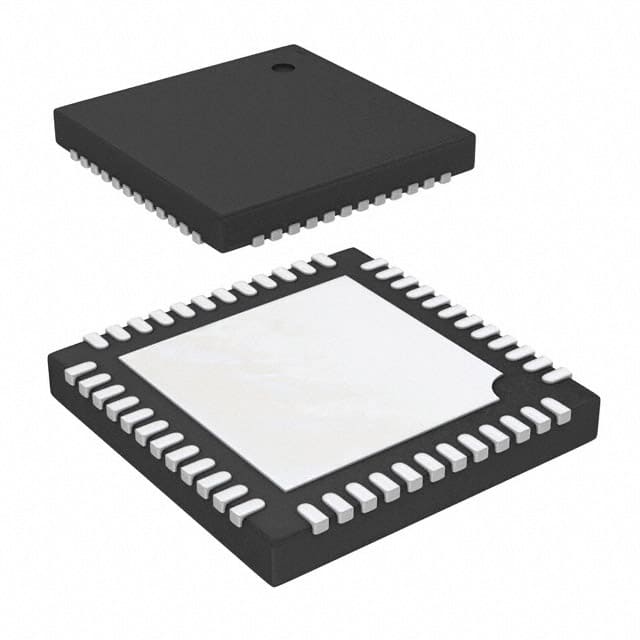

Packaged in a 48-VFQFPN (6x6) with surface mount capability, the P9035-0NTGI8 is suitable for WPC-compliant wireless charging base stations. It operates within a temperature range of -40°C to 85°C and has a typical current consumption of 20mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V ±5%.
48-VFQFPN (6x6) and 48-WFQFN Exposed Pad.
-40°C to 85°C.
110kHz to 205kHz.
Fixed 50%.
20mA.
Yes, up to 64 bits.
