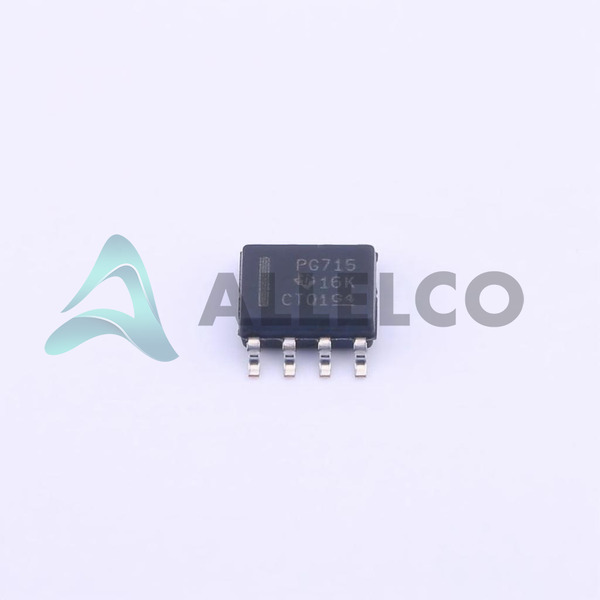

P82B715D The P82B715D is an I2C buffer and ReDriver in an 8-SOIC package, supporting 1 channel with operating voltage from 4.5V to 12V.
Mfr Part #:

P82B715D

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The P82B715D is an I2C buffer and ReDriver in an 8-SOIC package, supporting 1 channel with operating voltage from 4.5V to 12V.
✓ Total Stock: 25,829 pcs
$ Price Range: $6.12

P82B715D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
25,829 pcs
On Request
25829 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P82B715D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Current
Input
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

P82B715D Description

Short technical summary and product information.

The P82B715D is an integrated circuit designed as an I2C buffer and ReDriver. It features a single channel and operates within a voltage range of 4.5V to 12V. The device is suitable for signal buffering and level shifting in I2C communication systems. It is packaged in an 8-SOIC surface-mount package with a width of 3.90mm. The device supports applications requiring signal integrity over long cable runs or multiple bus segments. Its design ensures reliable operation within a temperature range of -40°C to 85°C, making it suitable for industrial and consumer electronics.



The 8-SOIC package facilitates surface mounting on printed circuit boards, providing a compact footprint for space-constrained designs. The device's electrical characteristics include a maximum bus capacitance of 400 pF and a supply current of 22 mA. It offers robust ESD protection with a human-body model rating of ±2500 V, ensuring durability against electrostatic discharge. The device supports bus extension distances over 50 meters using twisted-pair wiring, making it ideal for long-distance I2C communication setups.

P82B715D Quick Information

Product Type: I2C Bus Extender
Canonical Name: P82B715D I2C Bus Extender

P82B715D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P82B715D Estimated Pricing

Qty Low High
1+ $6.12 $6.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

P82B715D Features

  • Supports I2C communication with 1 channel
  • Operates from 4.5V to 12V supply voltage
  • Package in 8-SOIC surface-mount form factor
  • Supports bus capacitance up to 400 pF
  • Provides robust ESD protection of ±2500 V

P82B715D Applications

  • Used for long-distance I2C signal transmission
  • Ideal for industrial control systems
  • Suitable for space-constrained electronic designs
  • Supports multiple bus segments with signal integrity

P82B715D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the P82B715D?

The P82B715D operates within a voltage range of 4.5V to 12V.

What package type does the P82B715D come in?

The P82B715D is packaged in an 8-SOIC surface-mount package.

What is the maximum bus capacitance supported by the P82B715D?

The maximum bus capacitance supported is 400 pF.

What is the operating temperature range of the P82B715D?

-40°C to 85°C.

What level of ESD protection does the P82B715D provide?

It provides ESD protection of ±2500 V under the Human-Body Model.
