Mfr Part #:

P822602

Name: P822602
Brand: Kyocera AVX
SKU: P822602

Mfr Name: Kyocera AVX

Description:

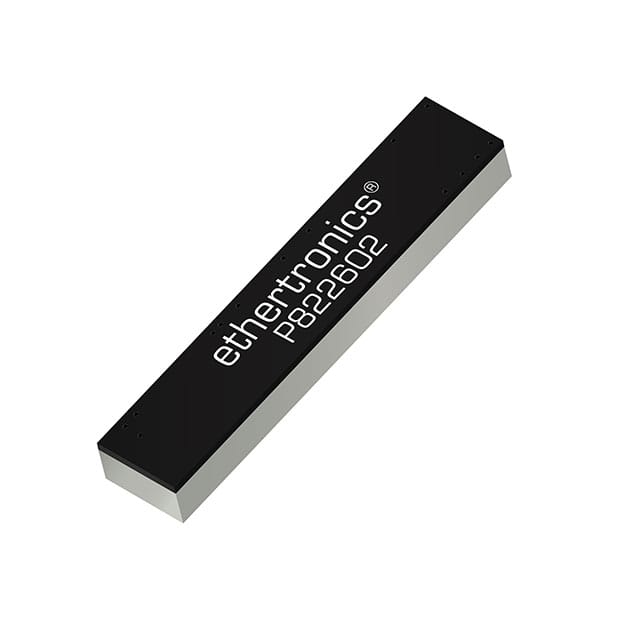

RF ANT 700MHZ/750MHZ FLAT BAR

Stock on Request

P822602 Description

Short technical summary and product information.

RF ANT 700MHZ/750MHZ FLAT BAR

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

P822601

Kyocera AVX

RF ANT 700MHZ/750MHZ FLAT BAR

Category	RF Antennas
Manufacturer Name	Kyocera AVX
Antenna Type	Flat Bar
Applications	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Frequency (Center	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
Frequency Group	Wide Band
Frequency Range	700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Gain	1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
Height (Max)	0.126" (3.20mm)
Mounting Type	Surface Mount
Number of Bands	8
Power	2 W
RF Family	Cellular
Termination	Solder
VSWR	2.5
