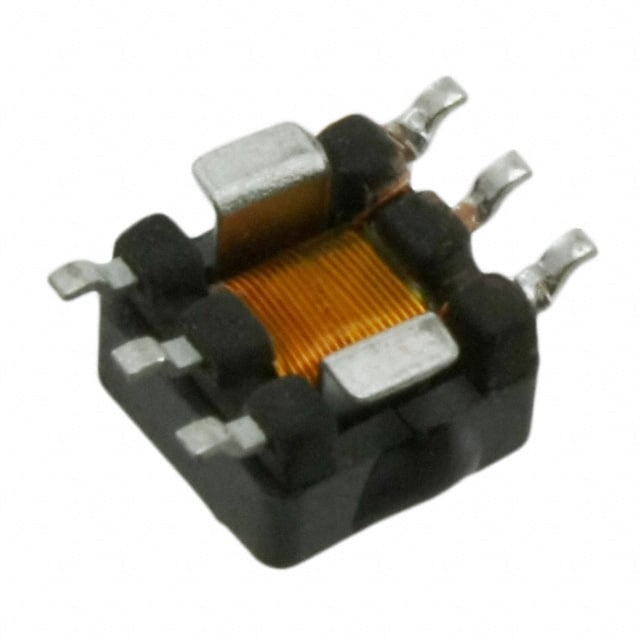

P8208NL The Pulse Electronics P8208NL is a surface mount current sense transformer with a 1:100 turns ratio. It operates within a frequency range of 20kHz to 1MHz.
Mfr Part #:

P8208NL

Available from 3 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P8208NL is a surface mount current sense transformer with a 1:100 turns ratio. It operates within a frequency range of 20kHz to 1MHz.
✓ Total Stock: 169 pcs
$ Price Range: $3.00

P8208NL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P8208NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance (DCR)
Footprint
Frequency Range
Height
Inductance
Lead Spacing
Length
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
Termination Style
Turns Ratio
Type
Width
View Similar Products (0)

P8208NL Description

Short technical summary and product information.

The Pulse Electronics P8208NL is a surface mount current sense transformer from the P820X series. It features a 1:100 turns ratio and is designed for current sensing applications.



Key electrical specifications include a current rating of up to 10A and a frequency range of 20kHz to 1MHz. The transformer has a primary DCR of 6mOhm and a secondary DCR of 5.5 Ohm. It has an inductance of 2mH.



Mechanically, the P8208NL has a height of 5.5mm and a footprint of 8.4mm x 7.2mm. It is designed for surface mounting with gull wing termination style. The operating temperature range is -40°C to +130°C.

P8208NL Quick Information

Product Type: Current Sense Transformer
Series: P820X
Canonical Name: Pulse Electronics P8208NL Current Sense Transformer
Subcategory: Current Sense Transformer

P8208NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P8208NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

P8208NL Features

  • Surface mount current sense transformer
  • 1:100 turns ratio
  • Up to 10A current rating
  • 20kHz to 1MHz frequency range
  • Compact 8.4mm x 7.2mm footprint

P8208NL Applications

  • Current monitoring circuits
  • Power supply applications
  • Motor control systems
  • Battery management systems

P8208NL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the turns ratio of the P8208NL?

The P8208NL has a turns ratio of 1:100.

What is the maximum current rating for the P8208NL?

The P8208NL has a current rating of up to 10A.

What is the operating frequency range of the P8208NL?

The P8208NL operates within a frequency range of 20kHz to 1MHz.

What is the operating temperature range for the P8208NL?

The P8208NL operates from -40°C to +130°C.

What type of mounting does the P8208NL use?

The P8208NL is a surface mount component.

What are the common issues when using the P8208NL in high-frequency applications?

In high-frequency applications, users may encounter issues such as signal degradation, attenuation, or improper impedance matching when using the P8208NL. To minimize these problems, it's essential to ensure that the component is properly integrated into the circuit, with adequate grounding and shielding to prevent interference and signal loss. Additionally, users should verify that the operating frequency range aligns with the product's capabilities to avoid performance issues.

How can thermal issues be prevented with the P8208NL during operation?

Thermal management is critical when using the P8208NL, especially in high-power applications. Overheating can cause component failure or performance degradation. To mitigate thermal issues, ensure that the P8208NL is used within its specified operating temperature range. Proper heat dissipation mechanisms such as heat sinks, thermal pads, or appropriate PCB layouts with adequate copper areas should be employed. Additionally, reducing current load and optimizing airflow around the component can further prevent excessive heat buildup.
