P6SMBJ26CA-AU The Panjit P6SMBJ26CA-AU is a bidirectional TVS diode designed for transient voltage suppression. It features a 26V reverse standoff voltage and a 14.2A peak pulse current capability.
Mfr Part #:

P6SMBJ26CA-AU

Available from 1 distributors
Mfr Name: PANJIT
PANJIT
The Panjit P6SMBJ26CA-AU is a bidirectional TVS diode designed for transient voltage suppression. It features a 26V reverse standoff voltage and a 14.2A peak pulse current capability.
✓ Total Stock: 12,000 pcs
$ Price Range: $0.99

P6SMBJ26CA-AU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P6SMBJ26CA-AU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Channels
Conflict Minerals
Mounting Type
SVHC Present
Tape & Reel
Type
View Similar Products (0)

P6SMBJ26CA-AU Description

Short technical summary and product information.

The Panjit P6SMBJ26CA-AU is a bidirectional Transient Voltage Suppressor (TVS) diode. It is designed to protect sensitive electronic components from voltage transients.



Key electrical specifications include a typical reverse standoff voltage of 26V and a minimum breakdown voltage of 28.9V. The device can handle a peak pulse current of 14.2A (10/1000µs) and offers a clamping voltage of 42.1V at this current. It has a peak pulse power rating of 600W.

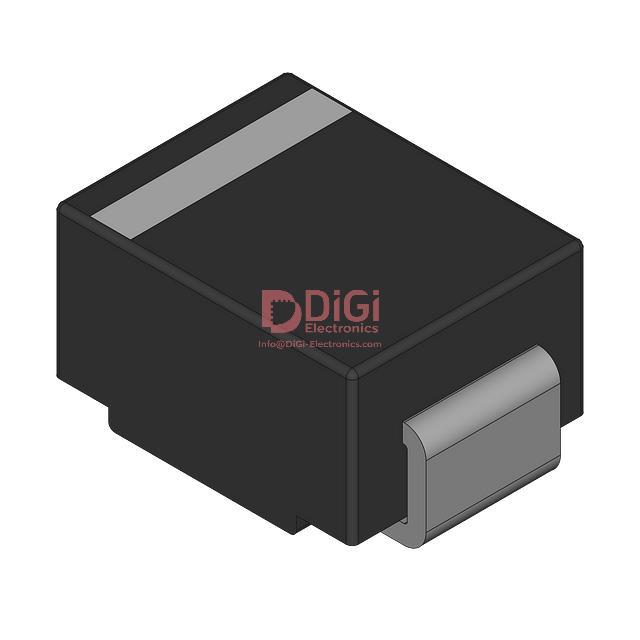

This TVS diode is housed in an SMB (DO-214AA) surface mount package, making it suitable for integration into compact electronic designs. It is supplied on tape and reel for automated assembly processes.

P6SMBJ26CA-AU Quick Information

Product Type: TVS Diode
Series: P6SMBJ-AU
Canonical Name: P6SMBJ26CA-AU Bidirectional TVS Diode
Subcategory: TVS Diodes

P6SMBJ26CA-AU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P6SMBJ26CA-AU Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

P6SMBJ26CA-AU Features

  • Bidirectional TVS diode for transient suppression.
  • 26V typical reverse standoff voltage.
  • 14.2A peak pulse current capability.
  • 600W peak pulse power.
  • SMB surface mount package.

P6SMBJ26CA-AU Applications

  • Protection of DC power supply lines.
  • Transient suppression in automotive electronics.
  • I/O interface protection for communication ports.
  • ESD protection for consumer electronics.

P6SMBJ26CA-AU FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical reverse standoff voltage for the P6SMBJ26CA-AU?

The typical reverse standoff voltage is 26V.

What is the minimum breakdown voltage of the P6SMBJ26CA-AU?

The minimum breakdown voltage is 28.9V.

What is the peak pulse current rating for the P6SMBJ26CA-AU?

The peak pulse current rating is 14.2A for a 10/1000µs waveform.

What is the peak pulse power of the P6SMBJ26CA-AU?

The peak pulse power is 600W.

What type of TVS diode is the P6SMBJ26CA-AU?

The P6SMBJ26CA-AU is a bidirectional TVS diode.

What package is the P6SMBJ26CA-AU supplied in?

The P6SMBJ26CA-AU is supplied in an SMB (DO-214AA) surface mount package.
