| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,071 pcs
|
5071 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Power Dissipation |

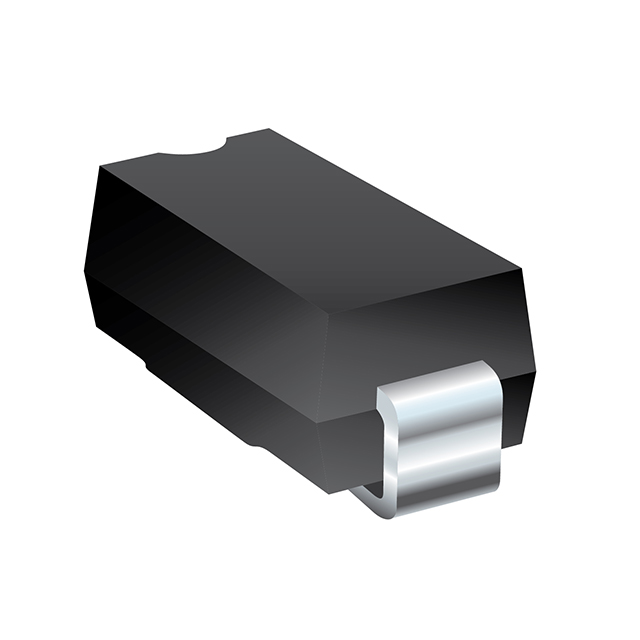

The P6SMB24A is a Transient Voltage Suppressor (TVS) diode manufactured by Diotec Semiconductor, designed to protect sensitive electronic equipment from voltage transients. It offers a peak pulse power dissipation of 600W at a 10/1000μs waveform.
Key electrical characteristics include a typical reverse standoff voltage of 20.5V and a maximum clamping voltage of 33.2V at Ipp. The device also features a fast response time, typically less than 1.0ps, making it suitable for high-speed data lines. It operates within a temperature range of -55°C to 150°C.
This TVS diode is packaged in a DO-214AA SMB surface-mount package, optimized for minimal PCB space. It is suitable for applications requiring protection against lightning-induced transients and other voltage events in telecom, computer, industrial, and consumer electronics.
The P6SMB series is RoHS compliant and halogen-free, with a Pb-free E3 terminal finish. It meets MSL level 1 requirements and is UL recognized.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The P6SMB24A has a peak pulse power dissipation of 600W at a 10/1000μs waveform.
The typical reverse standoff voltage for the P6SMB24A is 20.5V.
The maximum clamping voltage for the P6SMB24A at Ipp is 33.2V.
The P6SMB24A is in a DO-214AA, SMB package.
The operating temperature range for the P6SMB24A is -55°C to 150°C.
Yes, the P6SMB24A is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the P6SMB24A is 1 Unlimited.
