| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,200 pcs
|
13200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| ESD Protection | |
| Forward Voltage | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range | |
| Peak Forward Surge Current | |
| Peak Pulse Power Dissipation | |
| Power | |
| Power Line Protection | |
| Response Time | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Thermal Resistance Junction-to-Ambient | |
| Thermal Resistance, Junction to Lead | |
| Type | |
| Unidirectional Channels | |
| Voltage |

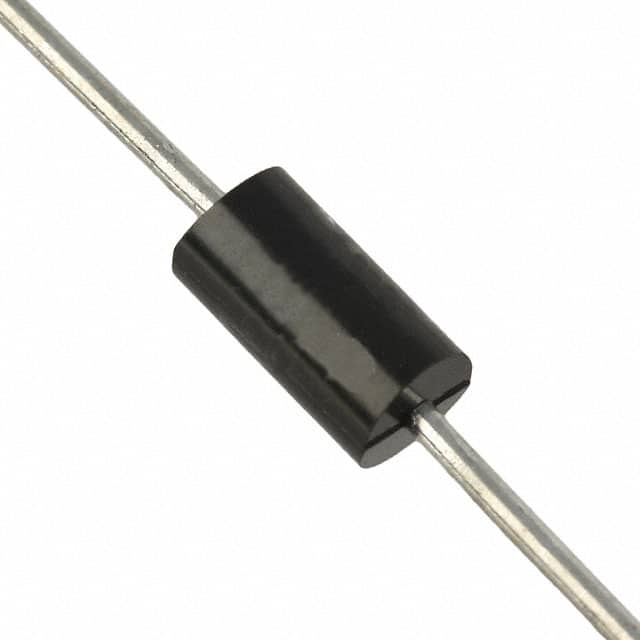

The P6KE30A is a unidirectional TVS diode from Taiwan Semiconductor designed to protect sensitive electronic equipment from voltage transients. It delivers 600W peak pulse power dissipation (10/1000μs waveform) with a reverse standoff voltage of 25.6V and a maximum clamping voltage of 41.4V at 14.5A peak pulse current. The device features an ultra-fast response time of less than 1ps from 0V to breakdown voltage and provides ESD protection up to 30kV (air and contact) per IEC 61000-4-2. Housed in a DO-15 (DO-204AC) axial leaded through-hole package, it operates over a junction temperature range of -55°C to 175°C. The component is RoHS3 compliant, halogen free, and features matte tin lead-free plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
| 10+ | $0.33 | $0.33 |
| 100+ | $0.21 | $0.21 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.14 | $0.14 |
| 3,500+ | $0.10 | $0.10 |
| 24,500+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25.6 V.
41.4 V at 14.5 A (10/1000μs waveform).
14.5 A maximum at 10/1000μs waveform.
DO-15 (DO-204AC) axial leaded through-hole package.
600 W maximum at 10/1000μs waveform (single die part).
Yes, it withstands 30 kV air and contact discharge per IEC 61000-4-2.
