| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,777 pcs
|
8777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,770 pcs
|
2770 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
1,001 pcs
|
1001 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,001 pcs
|
1001 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Response Time | |
| Reverse Standoff Voltage (Vrwm) | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Unidirectional Channels | |
| Voltage |

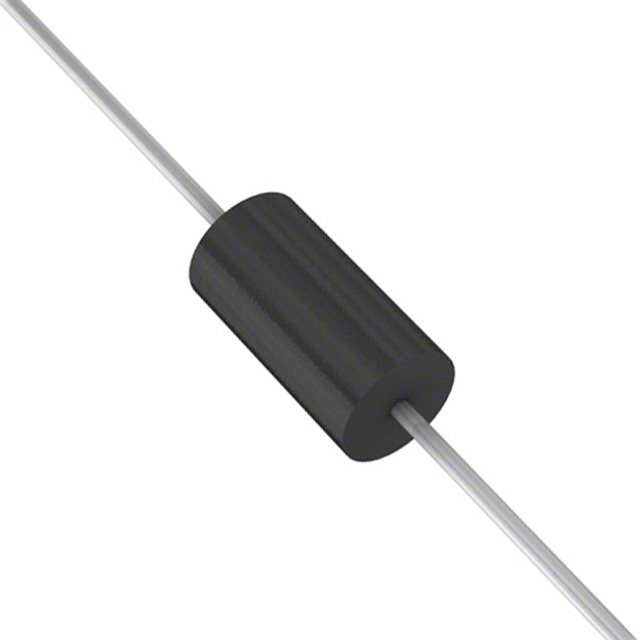

The P6KE200A is a 600W transient voltage suppression (TVS) diode from Littelfuse, designed to protect sensitive electronic equipment from voltage transients. It features a reverse standoff voltage of 171V and a maximum clamping voltage of 274V at a peak pulse current of 2.2A (10/1000μs waveform). The device is unidirectional and utilizes a Zener avalanche breakdown mechanism for fast response, typically less than 1ps. It is suitable for general purpose applications such as I/O interfaces, VCC bus, and other vulnerable circuits in telecom, computer, industrial, and consumer electronics. The P6KE200A is housed in a DO-204AC (DO-15) axial leaded package, designed for through-hole mounting. It is RoHS3 compliant, halogen-free, and has a lead-free finish. The operating temperature range is -55°C to 175°C.
171V.
274V at 2.2A peak pulse current.
2.2A for a 10/1000μs waveform.
DO-204AC (DO-15) axial leaded through-hole package.
600W for single die parts at 10/1000μs waveform.
Typically less than 1ps from 0V to breakdown voltage.
-55°C to 175°C (junction temperature).
