| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Protection | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

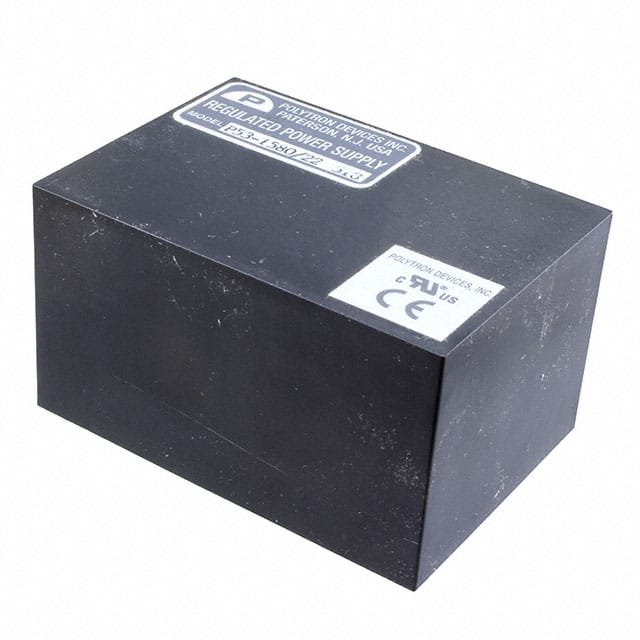

The Daburn Electronics P53-1580/22 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides multiple output voltages including 5V, +15V, and -15V, with a total power output of 9.5W.
Key electrical specifications include line regulation of ±0.2% and load regulation of ±0.2%. The device offers a temperature coefficient of ±0.02%/°C typ. and an isolation resistance of 50MOhms. It also features short circuit protection.
This converter operates within a temperature range of -25°C to +71°C and is suitable for through-hole mounting. Its physical dimensions are 88.9mm in length, 63.5mm in width, and 51.0mm in height.
The P53-1580/22 is approved by CE, CSA, cURus, and UL, indicating compliance with various safety standards.
105-125 Vac at 50-60 Hz.
+5V, +15V, and -15V.
1A for the 5V output, and 150mA for each ±15V output.
-25°C to +71°C.
7-DIP through-hole module.
Yes, short circuit protection.
88.9mm x 63.5mm x 51.0mm.
