| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Current | |
| Holding Current (IH) | |
| Mounting Type | |
| Number of Elements | |
| On-state Current (IT) | |
| On-state Voltage (VT) | |
| Storage Temperature | |
| Supplier Device Package | |
| Switching Current (IS) | |
| Tape & Reel | |
| VDRM (Pins 1-2, 3-2) | |
| VS (Pins 1-2, 3-2) | |
| Voltage |

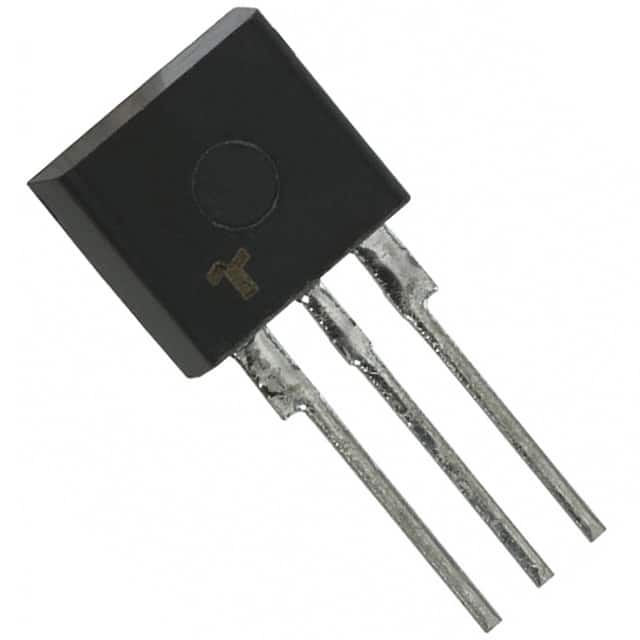

The Littelfuse P5103AC is a SIDACtor protection thyristor designed to protect baseband equipment from damaging overvoltage transients. It offers balanced overvoltage protection in a patented Y configuration, preventing longitudinal to differential conversion. Key electrical specifications include a standoff voltage (VDRM) of 270V min to 350V max and a switching voltage (VS) of 420V min to 600V max for pins 1-2 and 3-2. The device has a minimum holding current of 150 mA, a maximum switching current of 800 mA, and a nominal on-state current of 2.2 A with a maximum on-state voltage of 8 V. Capacitance is 40 pF for pins 1-2/3-2 and 60 pF for pins 1-3. The P5103AC is mounted in a through-hole 3-SIP package (TO-220 Modified), suitable for single-port protection applications. It is RoHS3 compliant and lead-free (Pb-free E3).
The VDRM for pins 1-2 and 3-2 is 270V minimum and 350V maximum.
The VS for pins 1-2 and 3-2 is 420V minimum and 600V maximum.
It uses a through-hole 3-SIP package with TO-220 Modified supplier package.
The holding current is 150 mA minimum.
The on-state current (IT) is 2.2 A nominal.
The on-state voltage (VT) is 8 V maximum at IT=2.2 A.
Yes, it is RoHS3 compliant and lead-free (Pb-free E3), verified from the datasheet.
