| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Withstanding Voltage |

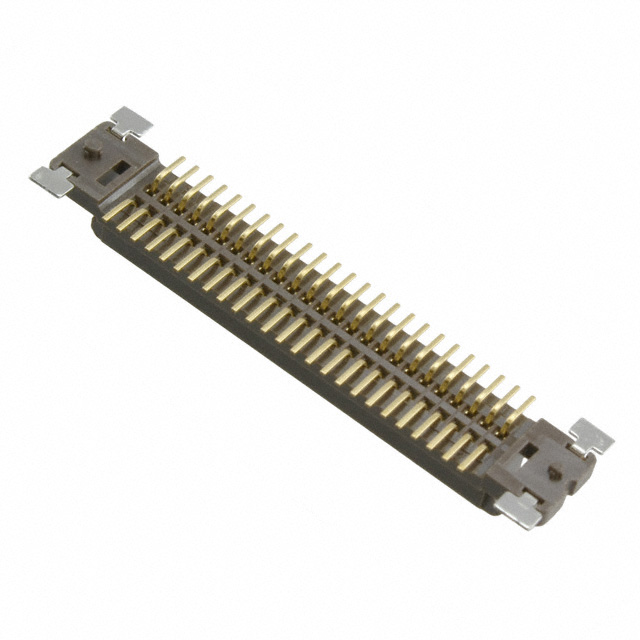

The 3M P50L-050S-RR1-DA is a low profile socket connector from the Pak 50 series, designed for board-to-board stacking applications. It features 50 positions arranged in 2 rows with a 1.27mm (0.050") pitch. The connector uses a right angle through hole mounting style and includes board lock features for secure attachment during soldering.
Electrical specifications include a current rating of 0.5A per contact, insulation resistance greater than 1×10^9 Ω at 500V DC, and a withstanding voltage of 650V AC for 1 minute. The operating temperature range is -55°C to +85°C.
The insulator is made of glass filled PPS with UL 94V-0 flammability rating. Contacts are phosphor bronze with gold flash plating on the wiping area and solder tails. The connector is RoHS compliant and rated for 260°C MSL1 process per J-STD-020C.
| Qty | Low | High |
|---|---|---|
| 209+ | $4.94 | $4.94 |
| 418+ | $4.65 | $4.65 |
| 1,045+ | $4.07 | $4.07 |
| 2,508+ | $3.86 | $3.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions arranged in 2 rows.
1.27mm (0.050").
0.5A per contact.
-55°C to +85°C.
Through hole, right angle.
