| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | 51+ | On Request | On Request | |
|
1,259 pcs
|
1259 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology |

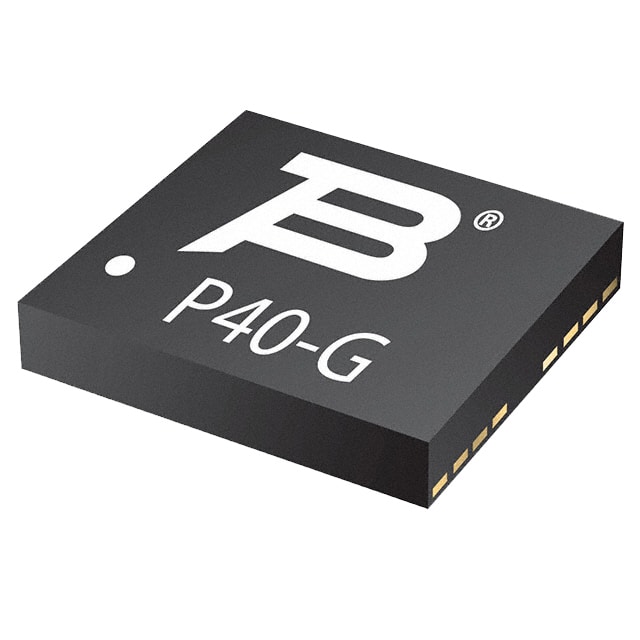

The Bourns P40-G240-WH is a high-speed bidirectional transient blocking unit (TBU) from the P40-G series, designed to protect sensitive electronics from surges caused by short circuits, AC power cross, induction, and lightning. It uses MOSFET semiconductor technology to trigger and block overcurrent events with a typical trigger current of 350 mA and a blocking time of just 0.2 µs.
The device provides impulse protection up to 40 V (rise time ≥ 1 µs) and continuous RMS protection up to 28 V. The maximum continuous current is 240 mA, and the maximum blocking current is 480 mA. Series resistance is typically 3.6 Ω, with a line-to-line resistance balance of 5%. Quiescent current is 0.7 mA at 40 V DC, and the reset voltage is 7 V.
The P40-G240-WH is housed in a surface mount 6-SMD, No Lead package (supplier package 6-DFN 4x4 mm). It operates over a temperature range of -55 °C to +125 °C and can be stored at -65 °C to +150 °C. The junction-to-air thermal resistance is 130 °C/W on a standard FR4 PCB with 0.035 sq. in. copper.
Common applications include xDSL line protection, high-speed data interfaces (LVDS, HDMI), and industrial sensor and control circuits. The device is RoHS3 compliant and UL recognized (file E315805).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.47 | $1.47 |
| 10+ | $1.23 | $1.23 |
| 100+ | $0.92 | $0.92 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.62 | $0.62 |
| 3,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device provides impulse protection up to 40 V and continuous RMS protection up to 28 V.
It is available in a 6-SMD, No Lead package with a supplier device package of 6-DFN (4x4).
-55 °C to +125 °C.
Yes, it is RoHS3 compliant and UL recognized (file E315805).
The typical trigger current is 350 mA.
The maximum continuous current is 240 mA, which will not cause blocking.
The maximum blocking time is 0.2 µs.
