| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Protection | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

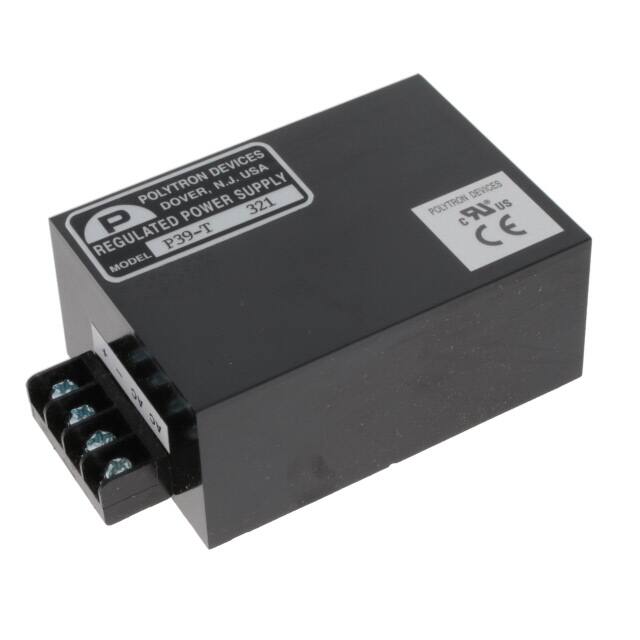

The Polytron P39T is a linear encapsulated AC-DC power module designed for ITE (Commercial) applications. It provides a regulated 5VDC output at up to 2A current.
Key electrical specifications include a wide input voltage range of 105-125 VAC at 50-60 Hz, with line and load regulation both at ±0.2%. The module offers a temperature coefficient of ±0.02%/°C and an isolation resistance of 50 MOhms. It also features short circuit protection.
Physically, the P39T is designed for chassis mounting and has dimensions of 104.1mm x 63.5mm x 39.6mm. The operating temperature range is -25°C to +71°C, with a storage temperature range of -25°C to +85°C. Cooling is achieved through free air convection.
This power module is approved by CE, cURus, and UL, indicating compliance with relevant safety standards. It is suitable for applications requiring a reliable and protected AC-DC power conversion.
The Polytron P39T provides a 5VDC output at 2A.
The P39T accepts an input voltage range of 105 to 125 VAC.
The P39T is designed for chassis mounting.
The P39T operates within a temperature range of -25°C to +71°C.
Yes, the P39T features short circuit protection.
