P39-24S-FST
Polytron

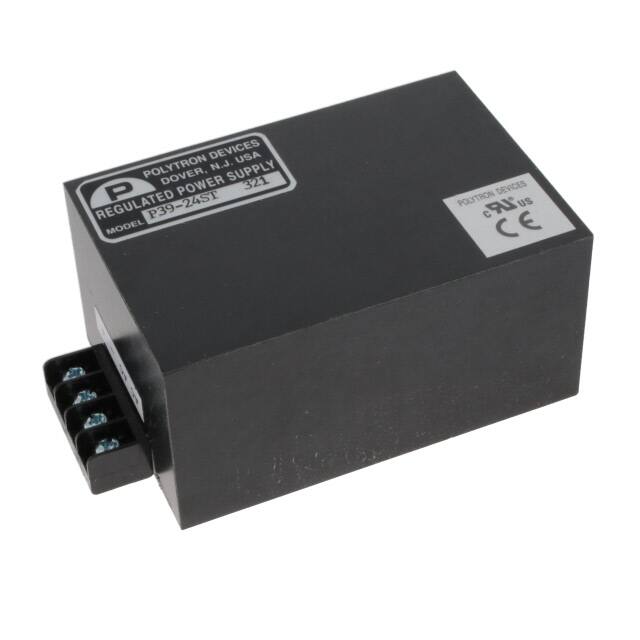

The Polytron P39-24S-FST is an AC-DC power module with a 24VDC output. It features a chassis mount design and operates from a 105-125 VAC input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Protection | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |
This Polytron P39-24ST is a linear encapsulated power module designed for AC-DC conversion. It provides a regulated 24VDC output at up to 1A current, with an input voltage range of 105 to 125 VAC.
The module features chassis mounting for easy integration into systems. Key electrical specifications include ±0.2% line regulation and ±0.2% load regulation for stable output. It also offers short circuit protection for enhanced reliability.
Environmental specifications include an operating temperature range of -25°C to +71°C and free air convection cooling. The unit is approved by CE, cURus, and UL, making it suitable for ITE (Commercial) applications.
The P39-24ST provides a 24VDC output.
The P39-24ST has an output current rating of 1A.
The input voltage range for the P39-24ST is 105 to 125 VAC.
The P39-24ST uses chassis mounting.
The operating temperature range is -25°C to +71°C.
Yes, the P39-24ST features short circuit protection.
