| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Protection | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

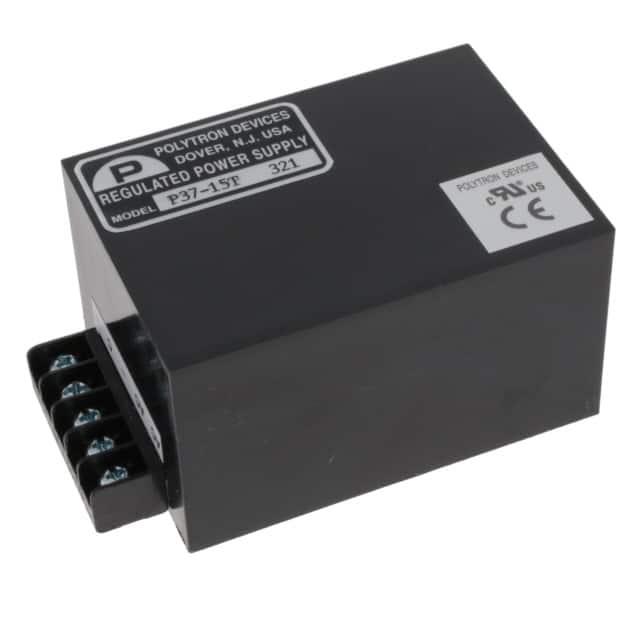

This Polytron P37-15T is a linear encapsulated AC/DC power module designed for chassis mounting. It delivers a regulated -15Vdc output with a current capability of 500mA. The module features excellent regulation performance, with line and load regulation specified at ±0.2%.
The operating temperature range for this unit is -25°C to +71°C, with free air convection cooling. It includes short circuit protection for enhanced reliability. The physical dimensions are 104.1mm in length, 63.5mm in width, and 50.8mm in height.
Approved by CE, cURus, and UL, this converter is suitable for ITE (Commercial) applications. It has a dual output configuration and is designed for robust performance in various industrial environments.
The P37-15T provides a -15Vdc output voltage.
The maximum output current for the P37-15T is 500 mA.
The P37-15T has line and load regulation of ±0.2%.
The P37-15T operates in a temperature range of -25°C to +71°C.
The P37-15T is designed for chassis mounting.
The P37-15T includes short circuit protection.
