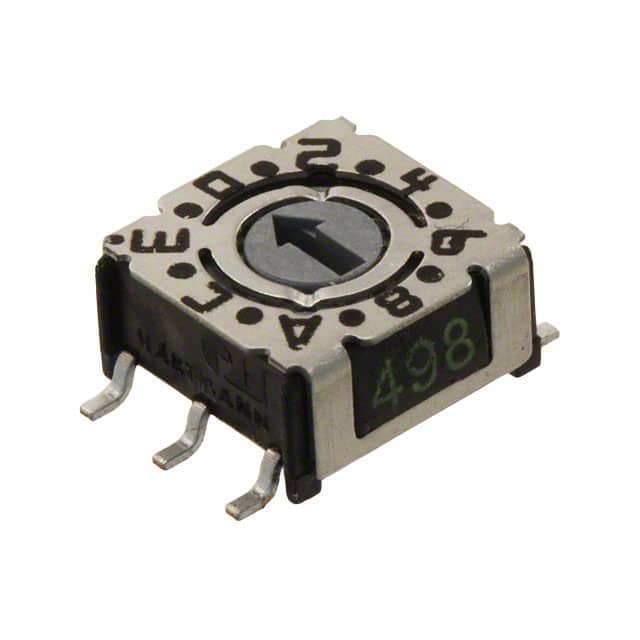

P36S103 The APEM Inc. P36S103 is a rotary DIP switch designed for surface mounting. It features 16 positions and operates at 24VDC with a 100mA current rating.
Mfr Part #:

P36S103

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. P36S103 is a rotary DIP switch designed for surface mounting. It features 16 positions and operates at 24VDC with a 100mA current rating.
✓ Total Stock: 499 pcs
$ Price Range: $0.75

P36S103 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
499 pcs
On Request
499 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P36S103 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

P36S103 Description

Short technical summary and product information.

The APEM Inc. P36S103 is a hexadecimal rotary DIP switch with 16 positions. It is designed for surface mounting with gull wing termination and a pitch of 2.54mm.



This switch operates at a voltage rating of 24VDC and a current rating of 100mA. The contact material is phosphor bronze with a gold finish. It features a sealed design for flux protection and is washable.



The operating temperature range for this component is -30°C to 90°C. The actuator type is rotary for tool, with flush and recessed options. The height above the board is 3.85mm.



This RoHS3 compliant switch has an MSL of 1 and is REACH unaffected.

P36S103 Quick Information

Product Type: DIP Switch
Canonical Name: APEM Inc. P36S103 Rotary DIP Switch
Subcategory: Rotary DIP Switch

P36S103 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P36S103 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

P36S103 Features

  • 16-position hexadecimal rotary DIP switch.
  • Surface mount with gull wing termination.
  • Rated for 24VDC and 100mA operation.
  • Sealed for flux protection and washable.
  • Operating temperature range -30°C to 90°C.

P36S103 Applications

  • Ideal for compact electronic assemblies.
  • Suitable for automated soldering processes.
  • Used in control and configuration circuits.
  • Provides reliable digital input selection.

P36S103 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the P36S103?

The operating voltage for the P36S103 is 24VDC.

What is the current rating of the P36S103 switch?

The current rating for the P36S103 switch is 100mA.

What is the operating temperature range for this DIP switch?

The operating temperature range is -30°C to 90°C.

How is the P36S103 mounted?

The P36S103 is a surface mount device.

What type of termination does the P36S103 use?

It uses gull wing termination.

Is the P36S103 washable?

Yes, the P36S103 is washable.
