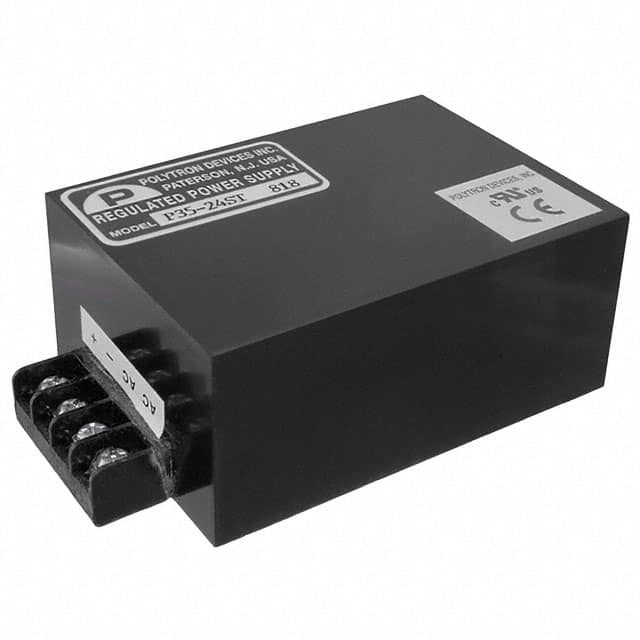

The Polytron P35-24ST is a linear encapsulated AC-DC power module designed for ITE (Commercial) applications. It provides a regulated 24VDC output at 300mA, with a wide input voltage range of 105 to 125 VAC at 50-60 Hz.
Key electrical specifications include ±0.2% line regulation and ±0.2% load regulation, ensuring stable output power. The module offers short circuit protection and an isolation resistance of 50 MOhms. It operates within an ambient temperature range of -25°C to +71°C.
This power module is designed for chassis mounting, offering a physical footprint of 104.1mm x 63.5mm x 39.6mm. It holds CE and cURus approval agencies, indicating compliance with relevant safety standards. The P35-24ST is suitable for various industrial and commercial applications requiring reliable power conversion.
The P35-24ST provides a regulated 24VDC output.
The P35-24ST can deliver up to 300 mA of output current.
The P35-24ST operates with an input voltage range of 105 to 125 VAC.
This power module can operate in temperatures ranging from -25°C to +71°C.
The P35-24ST is designed for chassis mounting.
The P35-24ST offers ±0.2% line regulation and ±0.2% load regulation.
