| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Protection Features | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

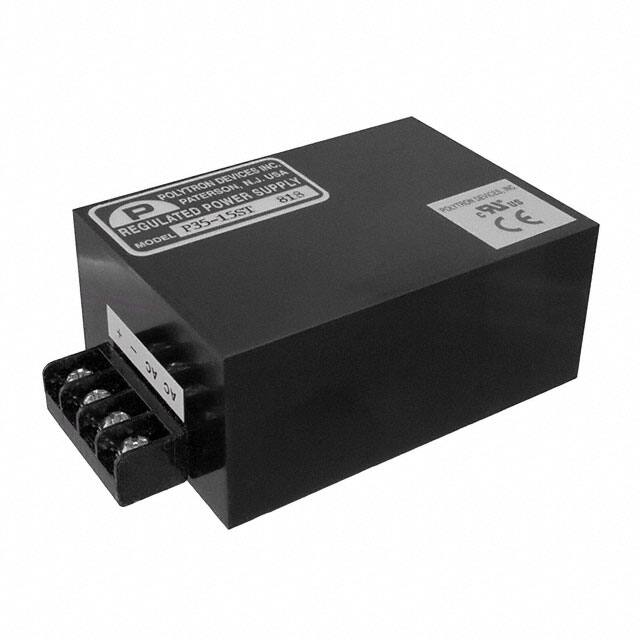

The Polytron P35-15ST is a linear encapsulated AC-DC power module designed for ITE (Commercial) applications. It features a single 15VDC output with a current capacity of 300mA.
Key electrical specifications include line regulation of ±0.2% and load regulation of ±0.2%. The module also offers a temperature coefficient of ±0.02%/°C typical and an isolation resistance of 50MOhms. It includes short circuit protection for enhanced reliability.
This power module operates within a temperature range of -25°C to 71°C and is cooled by free air convection. Its physical dimensions are 104.1mm in length, 63.5mm in width, and 39.6mm in height. The P35-15ST is suitable for chassis mounting and carries CE and cURus approvals.
Designed for robustness, this power module is RoHS3 compliant and has an MSL rating of 1 Unlimited.
The input voltage range is 105 to 125 VAC at 50 to 60 Hz.
The output is 15 VDC at 300 mA.
The operating temperature range is -25°C to 71°C.
The P35-15ST uses chassis mount.
Yes, it includes short circuit protection.
The dimensions are 104.1mm x 63.5mm x 39.6mm.
