| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Type | |
| Voltage | |
| Voltage Range |

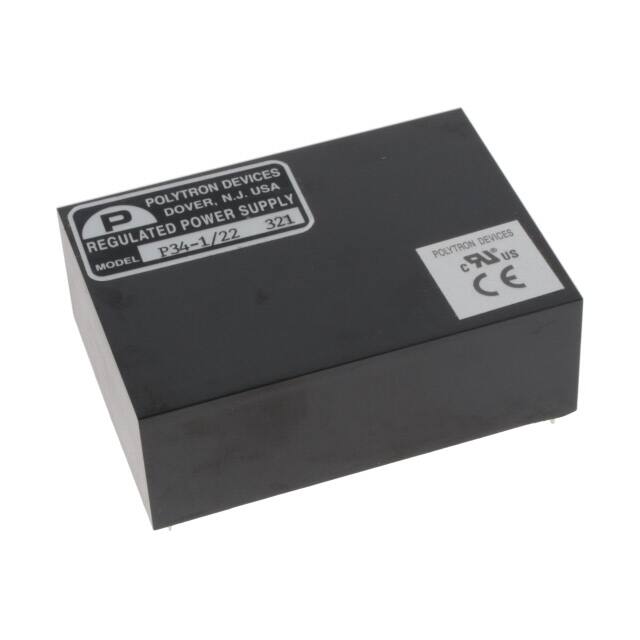

The Daburn Electronics P34-1/22 is a board-mount AC/DC converter designed for ITE (Commercial) applications. It provides a dual output of -15V with a current rating of 200mA per output.
Key electrical specifications include line regulation of 0.02% and load regulation of 0.05%. The unit offers an isolation resistance of 50 MOhms and includes short circuit protection (SCP).
This converter operates within a temperature range of -25°C to 71°C and is housed in a 5-DIP Module package. It is designed for Through Hole mounting and carries approvals from CE, cURus, and UL.
The physical dimensions are 88.9mm in length, 63.5mm in width, and 31.8mm in height.
105-125 Vac at 50-60 Hz.
Through-hole 5-DIP Module.
-25°C to 71°C.
±15 Vdc.
200mA per output.
Yes, includes short circuit protection (SCP).
88.9mm x 63.5mm x 31.8mm (3.50" x 2.50" x 1.25").
