| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Protection | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

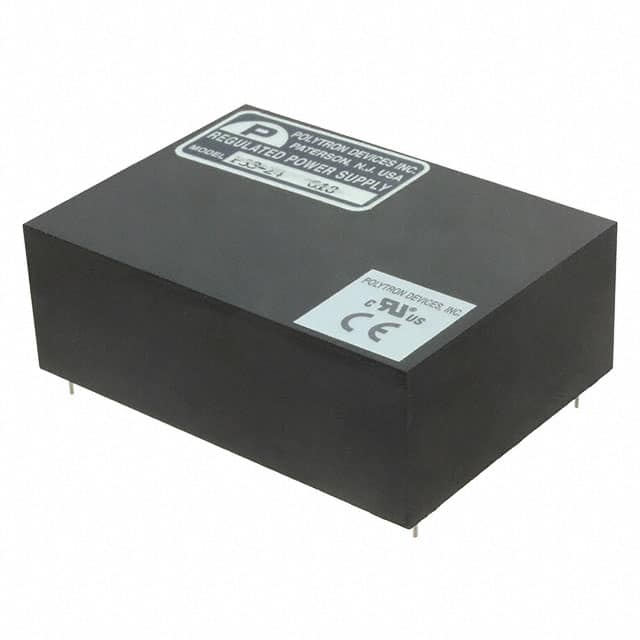

The Daburn Electronics P33-24 is a board-mount AC/DC converter designed for ITE (Commercial) applications. It delivers a regulated -24V output with a current rating of 100mA per output, featuring two outputs in total.
This converter is enclosed and designed for Through Hole mounting, with dimensions of 88.9mm x 63.5mm x 31.8mm. Key features include Short Circuit Protection (SCP) and approval by CE and cURus agencies.
The operating temperature range is from -25°C to +71°C. The unit offers line regulation of 0.2% and load regulation of 0.2%, with a temperature coefficient of ±0.02%/°C typical. Isolation resistance is rated at 50MOhms.
Input voltage range is specified as 105-125 Vac at 50-60 Hz. The P33-24 is compliant with RoHS3 standards and has an MSL rating of 1.
-24V
100mA
2
-25°C to +71°C
Through Hole
7-DIP Module, 5 Leads
RoHS3 Compliant
