| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

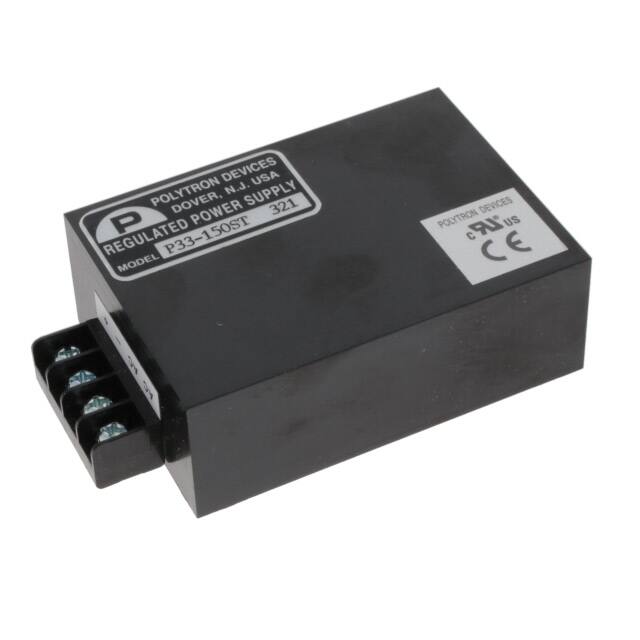

The Polytron P33-150ST is a linear encapsulated power module designed for AC to DC conversion. It features a single output of 150VDC with a current rating of 35mA.
This converter operates within an input voltage range of 105 to 125 VAC and offers line and load regulation of ±0.2%. It includes short circuit protection for enhanced reliability. The operating temperature range is -25°C to +71°C, with an optional wider range available.
Designed for chassis mounting, the P33-150ST has dimensions of 104.1mm x 63.5mm x 31.8mm. It holds approvals from CE, cURus, and UL, making it suitable for ITE (Commercial) applications. The isolation resistance is rated at 50MOhms.
The input voltage range is 105-125VAC.
The output is 150VDC at 35mA.
The standard operating temperature range is -25°C to 71°C, with an optional range of -40°C to +85°C.
The mounting type is chassis mount. Dimensions are 104.1mm x 63.5mm x 31.8mm.
Yes, short circuit protection is included.
It is approved to CE, cURus, and UL standards.
Line regulation is ±0.2% and load regulation is ±0.2%.
