| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50,000 pcs
|
50000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Breakover Voltage (VS) | |
| Capacitance | |
| Current | |
| Holding Current (IH) | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Elements | |
| Off-State Voltage (VDRM) | |
| On-state Current (IT) | |
| Storage Temperature | |
| Supplier Device Package | |
| Switching Current (IS) | |
| Tape & Reel | |
| Voltage |
The P2600EA is a SIDACtor® protection thyristor from Littelfuse, Inc., designed to protect baseband equipment such as modems, line cards, CPE, and DSL from damaging overvoltage transients. It features a minimum off-state voltage (VDRM) of 220 V at 5 µA, and a maximum breakover voltage (VS) of 300 V at 100 V/µs. The holding current is 150 mA minimum, and the switching current is 800 mA minimum. On-state current is rated at 2.2 A maximum with a maximum on-state voltage of 4 V at 2.2 A. Capacitance is specified between 20 pF and 35 pF at 1 MHz with 2 V bias. The component is housed in a TO-226-2, TO-92-2 (TO-226AC) package with through-hole mounting, and the supplier device package is TO-92-3. This series provides low voltage overshoot, low on-state voltage, and low capacitance, and does not degrade surge capability after multiple surge events within limits. It enables compliance with global regulatory standards including TIA-968-A/B, ITU K.20/21, GR 1089, IEC 61000-4-5, and YD/T 1082/993/950.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum off-state voltage is 220 V, tested at IDRM = 5 µA.
The maximum breakover voltage is 300 V, measured at a dV/dt of 100 V/µs.

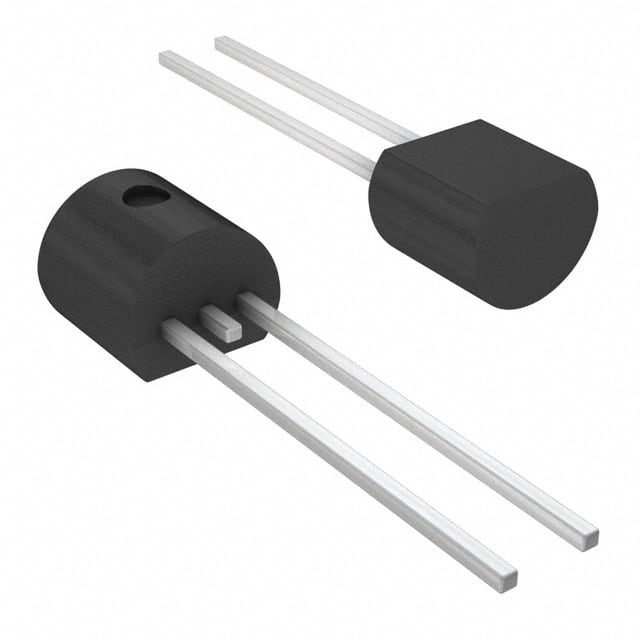

It is available in a TO-226-2, TO-92-2 (TO-226AC) package with through-hole mounting; the supplier device package is TO-92-3.
The minimum holding current is 150 mA.
The minimum switching current is 800 mA.
The maximum on-state current is 2.2 A.
The capacitance is between 20 pF and 35 pF, measured at 1 MHz with 2 V bias.
