| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Voltage Range |

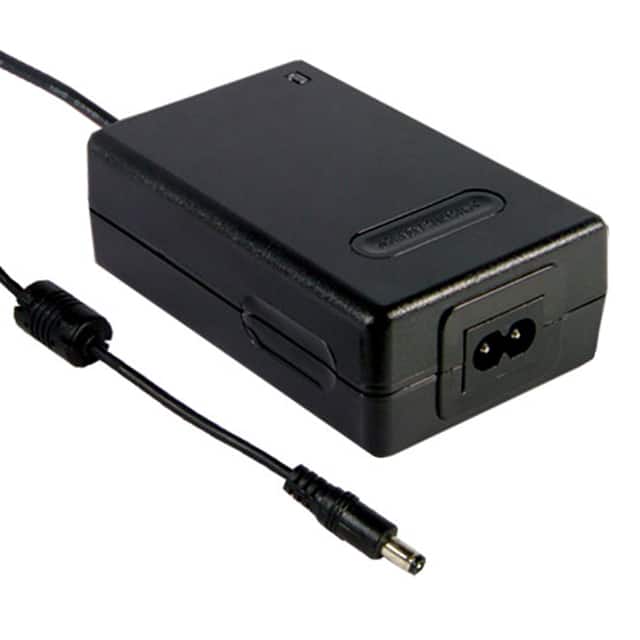

This Mean Well P25B13D-R1B is a versatile 25W AC/DC desktop power supply designed for international use. It features a universal input voltage range of 90-264 VAC and provides three distinct outputs: a main 5V at 2.5A, an auxiliary +12V at 0.8A, and a -12V at 0.3A. The adapter boasts a typical efficiency of 72% at full load, minimizing energy waste.
Constructed with a durable plastic enclosure, this power supply is suitable for ITE (Commercial) applications. It utilizes an IEC 320-C8 input connector and a DIN 5-pin output connector, with a standard cord length of 1.53 meters. The compact dimensions of 108mm x 67mm x 36mm make it ideal for space-constrained environments. Safety certifications include CB, CE, cULus, and GS, ensuring reliable and safe operation.
The unit complies with harmonic current standards (EN61000-3-2,3 Class B) and EMS immunity (EN61000-4-2,3,4,5,6,11 Criteria A). It also meets stringent safety requirements with a 3KVAC withstand voltage between input and output and a minimum isolation resistance of 100 MOhms at 500VDC. The Mean Well P25B13D-R1B is designed for applications requiring stable and reliable power delivery.
The Mean Well P25B13D-R1B provides three output voltages: 5V, +12V, and -12V.
The rated current for the main 5V output is 2.5A.
The P25B13D-R1B has a rated power output of 25W.
The typical efficiency of the P25B13D-R1B is 72%.
The operating temperature range for the P25B13D-R1B is 0°C to 40°C.
The dimensions of the P25B13D-R1B are 108mm x 67mm x 36mm.
The P25B13D-R1B complies with UL1950, CSA22.2, and EN60950-1 safety standards.
