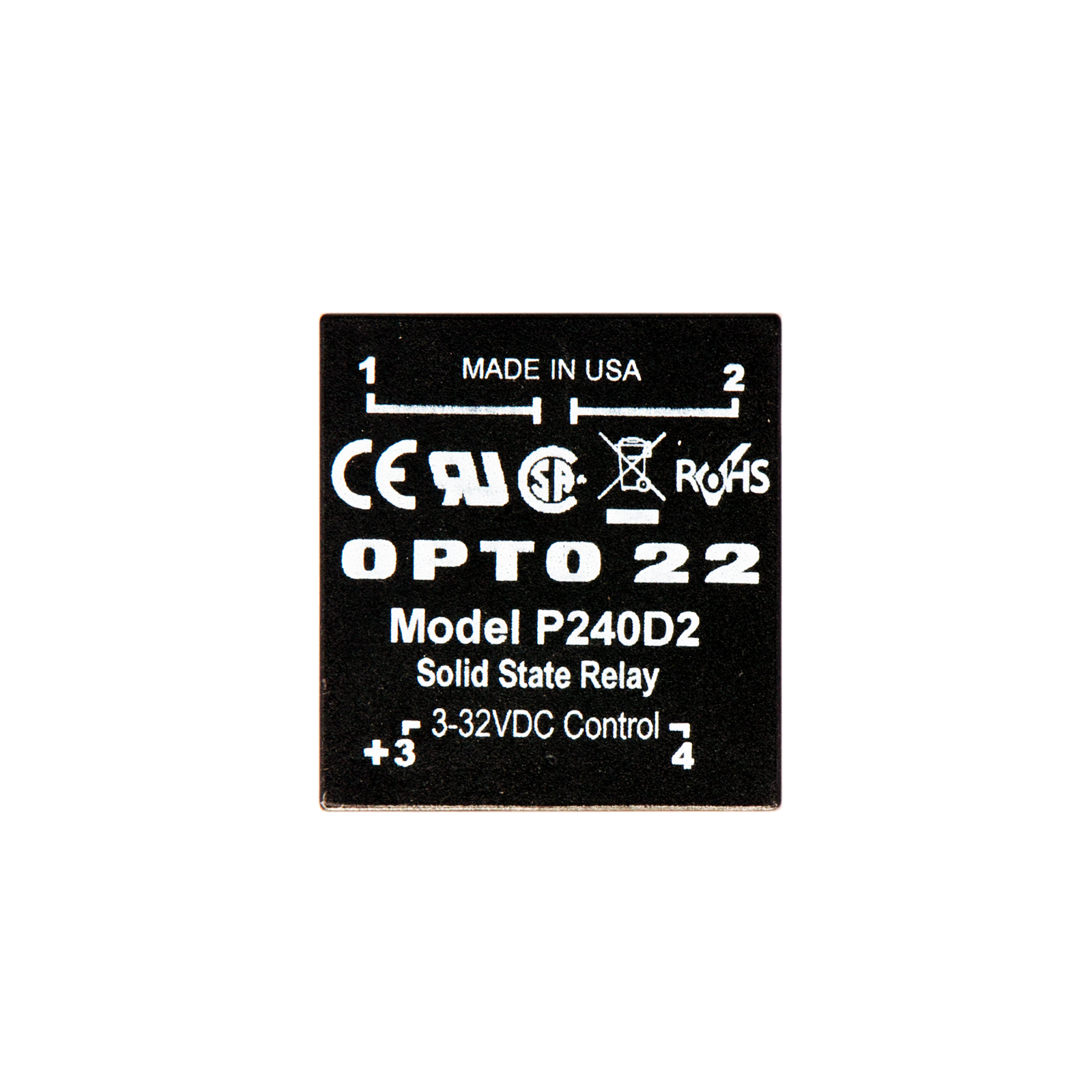

The Opto 22 P240D2 is a P Series Solid State Relay (SSR) designed for OEM applications. This DC-controlled relay is capable of switching 240 VAC at a nominal current rating of 2 Amps. It features a low-profile design with a height of 0.5 inches (12.7 mm), allowing for center mounting on printed circuit boards.
Key electrical specifications include a nominal AC line voltage of 240 VAC, a nominal current rating of 2A, and a peak surge current of 20A for 1 cycle. The input resistance is 1000 Ohms, with a signal pick-up voltage of 3 VDC and a drop-out voltage of 1 VDC. The maximum output voltage drop is 1.6 volts, and the off-state leakage current is a maximum of 5 mA. The operating voltage range is 24-280 VAC, with an I²t rating of 2 at 8.3 ms and an isolation voltage of 4,000 V RMS.
This SSR is suitable for various industrial automation applications. It is noted as obsolete and no longer available when current stock is depleted. The product carries a lifetime warranty.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal AC line voltage for the P240D2 is 240 VAC.
The nominal current rating is 2 Amps.
The peak surge current is 20 Amps for 1 cycle.
The nominal signal input resistance is 1000 Ohms.
The signal pick-up voltage is 3 VDC.
The maximum output voltage drop is 1.6 volts.
The operating voltage range is 24-280 VAC.
