| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,333 pcs
|
3333 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
146 pcs
|
146 pcs | On Request | 1 | On Request | On Request | 1448+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Heating Current | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

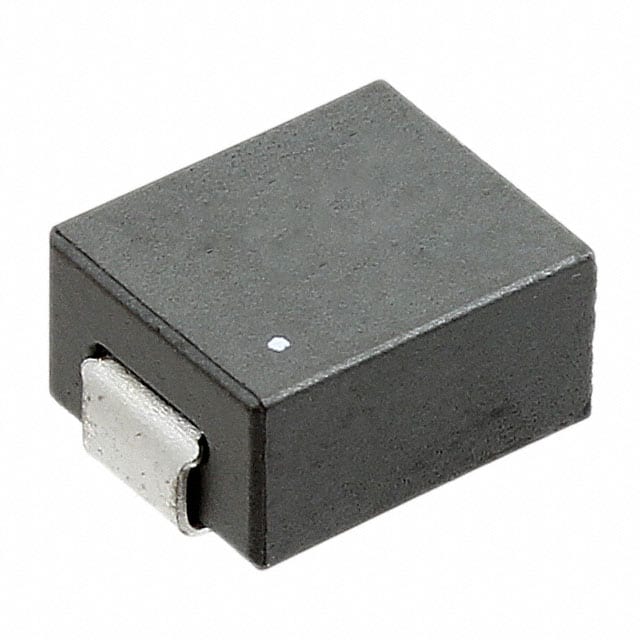

The Pulse Electronics P2004NLT is an SMT power inductor belonging to the Volta 2 series. This unshielded inductor features a 200nH inductance with a tight tolerance of ±20% and a low DC resistance of 0.56 mOhm Max. It is designed to handle a current rating of 15A and a saturation current of 16.8A, with a heating current of 15.1A.
With a compact footprint measuring 7.01mm x 6.48mm and a height of 3.18mm, the P2004NLT is suitable for surface mount applications. It operates reliably within a wide temperature range of -40°C to +130°C, making it versatile for various electronic designs. The inductor is supplied on tape and reel, with a standard package quantity of 1000 units.
This component is ideal for power supply circuits, DC-DC converters, and other applications requiring efficient energy storage and filtering. Its robust construction and specified performance characteristics ensure stable operation in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 190 nH ±20% at rated current.
The current rating is 15 A.
The DC Resistance (DCR) is a maximum of 0.56 mOhm.
The operating temperature range is -40°C to +130°C.
It is a surface mount inductor.
The standard package quantity is 1000 units per reel.
