| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
232 pcs
|
232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
144 pcs
|
144 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

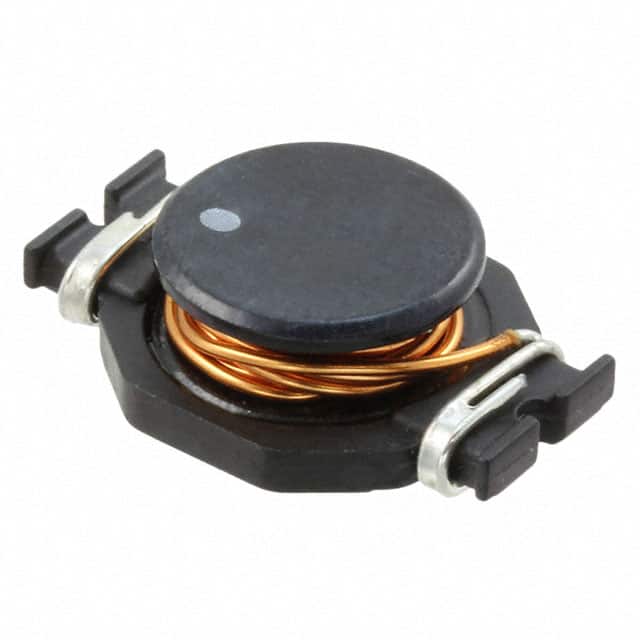

The Pulse Electronics P1252.472NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 4.7 µH with a tolerance of ±20% and a maximum DC resistance of 14 mOhm.
This unshielded inductor has a current rating of 8.4A and can operate within a temperature range of -40°C to 130°C. Its dimensions are 22.33mm in length, 15.14mm in width, and 7.49mm in height. The package type is classified as nonstandard.
It is suitable for various electronic circuits requiring stable inductance and current handling capabilities. The RoHS 3 compliance indicates adherence to certain environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH with a tolerance of ±20%.
The current rating is 8.4A.
The maximum DC resistance is 14 mOhm.
It operates from -40°C to 130°C.
It is a surface mount component.
No, it is unshielded.
It is a wirewound type inductor.
