| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,850 pcs
|
2850 pcs | On Request | 1 | On Request | On Request | 1131+ | On Request | On Request | |
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

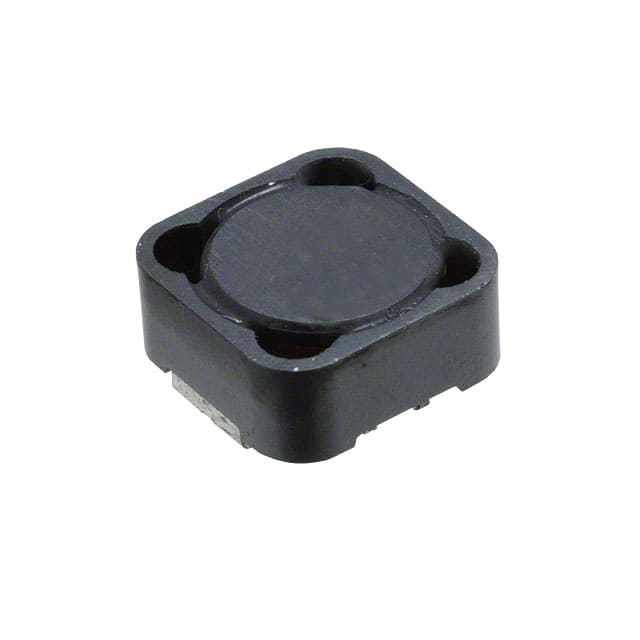

This Pulse Electronics P1171.392NLT is a wirewound, shielded fixed inductor designed for various electronic applications. It offers an inductance value of 3.9µH and a robust current rating of 7A, making it suitable for power handling.
The inductor has a maximum DC resistance (DCR) of 10mOhm and operates efficiently up to 34MHz. Its operating temperature range spans from -40°C to 130°C, ensuring reliability in diverse environmental conditions. The component features a surface mount package with dimensions of 12.24mm x 12.24mm x 6.00mm.
Key electrical characteristics include a tolerance of ±30%. The shielded construction helps minimize electromagnetic interference, making it a good choice for applications where signal integrity is critical. Its nonstandard package type indicates a specific form factor tailored for particular board layouts or performance requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 3.9 µH.
The maximum current rating is 7 A.
The maximum DC resistance is 10mOhm.
This inductor requires surface mounting.
The operating temperature range is -40°C to 130°C.
Yes, the P1171.392NLT is a shielded inductor.
