| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
943 pcs
|
943 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
930 pcs
|
930 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
875 pcs
|
875 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Saturation | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

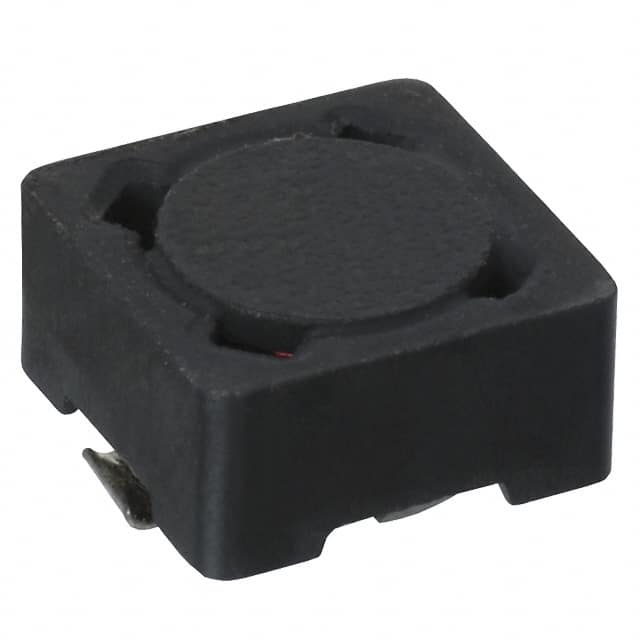

This Pulse Electronics P1167.223NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 22 µH with a tolerance of ±20% and a current rating of 1.4 A. The inductor is shielded and operates within a temperature range of -40°C to 130°C.
With a DC resistance (DCR) of 105mOhm maximum and a self-resonant frequency of 17MHz, this component is suitable for various electronic circuits. The dimensions are 7.54mm in length and width, and 4.50mm in height. The package type is listed as Nonstandard, and it is supplied in Cut Tape (CT) & Digi-Reel®.
Key electrical specifications include a saturation current of 1.4A. The product is classified under Fixed Inductors and is part of the P1167NL series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 22 microhenries at 100 kHz.
The current rating is 1.4 amperes.
The maximum DC resistance is 105 milliohms.
The self-resonant frequency is 17 MHz.
It uses surface mount technology.
It operates from -40°C to 130°C.
