| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center to End Length | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Installation Tools | |
| Insulation | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Stud | |
| Stud Hole Diameter | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Tongue Width | |
| Width | |
| Wire Gauge | |
| Wire Strip Length |

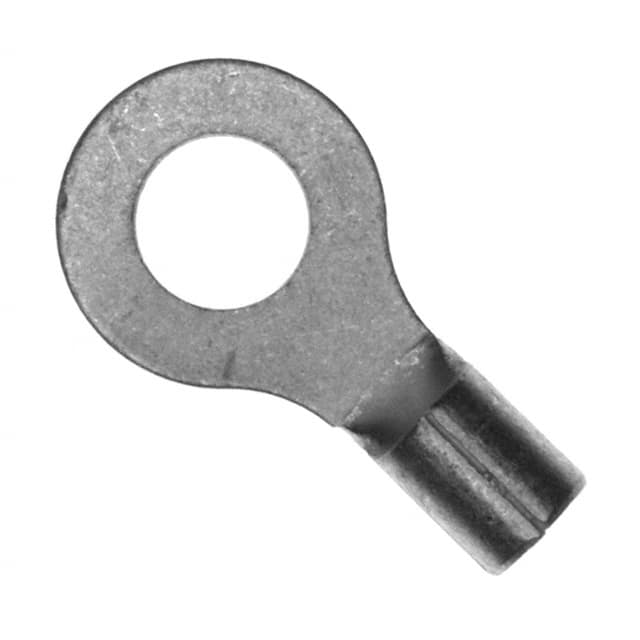

The Panduit P10-14R-L is a non-insulated ring terminal designed for 10-14 AWG copper wire. It accommodates a 1/4" (M6) stud and uses a crimp termination style. The terminal is made from tin-plated copper with a thickness of 1.02 mm (0.040").
Key mechanical dimensions include a length of 24.38 mm (0.960"), a width of 13.21 mm (0.520"), and a tongue width of 9.7 mm (0.38"). The stud hole diameter is 6.9 mm (0.27") and the center-to-end length is 17.8 mm (0.70"). The wire strip length is 7.1 mm (0.281") with a tolerance of +0.8/-0 mm.
The terminal features a brazed seam and serrated termination for secure wire grip. It is rated for a maximum temperature of 150°C (302°F). Installation can be performed using Panduit tools such as CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-1701, CT-2500 (CT-2570CH), and also approved tools CT-160 and CT-260.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The P10-14R-L supports 10-14 AWG solid or stranded copper wire.
The P10-14R-L fits a 1/4" (M6) stud.
No, the P10-14R-L is non-insulated.
The P10-14R-L uses crimp termination.
The contact is made of copper with a tin finish.
The maximum temperature rating is 150°C (302°F).
Recommended tools include CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-1701, CT-2500 (CT-2570CH). Also approved: CT-160, CT-260.
