| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Certification | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Stud | |
| Tape & Reel | |
| Temperature Rating | |
| Terminal Type | |
| Termination | |
| Thickness | |
| UL Listing | |
| Width | |
| Wire Gauge | |
| Wire Strip Length |

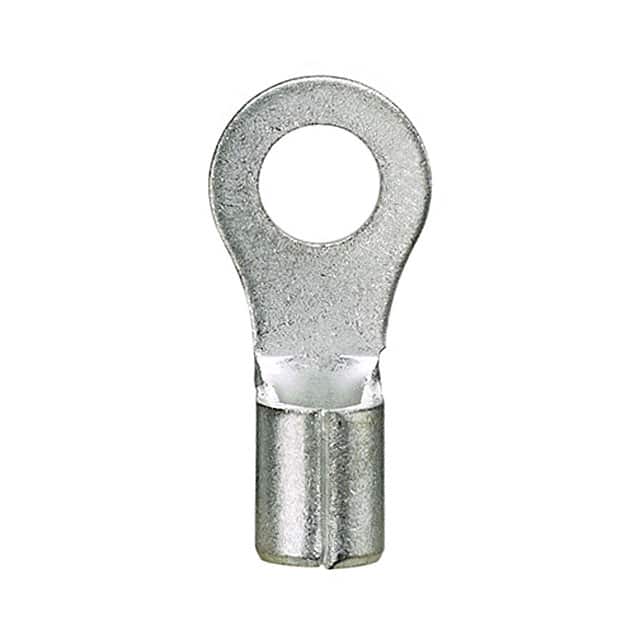

The Panduit P10-10R-D is a non-insulated ring terminal designed for reliable wire termination in electrical and electronic applications. It accepts 10 to 14 AWG solid or stranded copper wire and accommodates a #10 stud size. The terminal is constructed from 1.02 mm thick copper with a tin-plated finish for corrosion resistance and reliable conductivity.
This ring terminal uses a crimp termination style and is rated for a maximum operating temperature of 150 °C. It features a brazed seam and serrated inner barrel for secure wire grip and consistent electrical contact. The wire strip length is 7.1 mm (9/32").
The P10-10R-D is a free-hanging (in-line) mount terminal with an overall length of 20.57 mm and a width of 9.65 mm. It is UL Listed (LR31212) and CSA Certified (587H). The military equivalent part number is MS20659-105, Class 1 & 2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.32 | $0.32 |
| 100+ | $0.31 | $0.31 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.27 | $0.27 |
| 2,500+ | $0.27 | $0.27 |
| 5,000+ | $0.26 | $0.26 |
| 10,000+ | $0.26 | $0.26 |
| 25,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The P10-10R-D accepts 10 to 14 AWG solid or stranded copper wire.
This ring terminal is designed for a #10 stud size.
No, the P10-10R-D is a non-insulated ring terminal.
The maximum operating temperature is 150 °C (302 °F).
It is UL Listed (LR31212) and CSA Certified (587H).
The contact is made of copper with a tin plating finish.
The required wire strip length is 7.1 mm (9/32").
