Mfr Part #:

P1-25/E

Mfr Name: Moeller

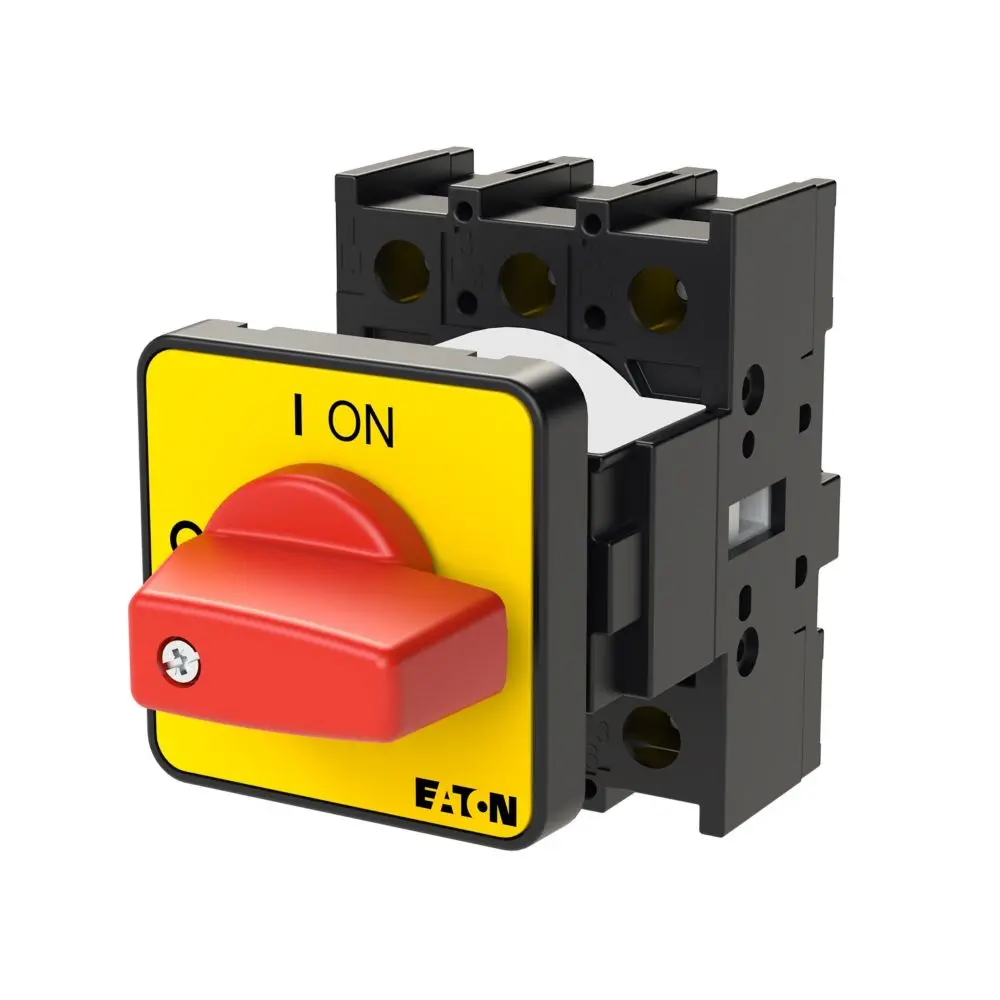

The Eaton Moeller P1-25/E-RT is a 25A, 3-pole, flush-mounted on-off switch with a red thumb grip and yellow front plate. It is designed for emergency switching off applications and rated up to 690V AC.

✓ Total Stock: 24 pcs

$ Price Range: $0.99

P1-25/E Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	24 pcs On Request	24 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

P1-25/E Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Moeller
Mounting Type	Flush mounting
Operating Temperature	-25 °C to +50 °C
Voltage	690 V AC

View Similar Products (0)

P1-25/E Description

Short technical summary and product information.

The Eaton Moeller P1-25/E-RT is a robust 25A, 3-pole, flush-mounted switch-disconnector designed for emergency switching off applications. It features a high-visibility red short thumb-grip actuator with a yellow front plate, ensuring safety and ease of operation.

This switch is rated for up to 690V AC and provides IP65 front protection and NEMA 12 enclosure rating, making it suitable for demanding industrial environments. It supports AC-3 and AC-23A motor load switching up to 11 kW at 400V AC. The device meets stringent UL, CSA, IEC/EN 60947-3, and VDE 0660 standards, guaranteeing reliability and safety.

Designed for industrial control panels, the P1-25/E-RT offers a mechanical life of over 300,000 operations. It is suitable for emergency stop and power isolation applications, providing essential safety functions in various industrial settings.

P1-25/E Quick Information

Product Type: On-off switch

Series: P1

Canonical Name: Eaton Moeller P1-25/E-RT Motor Disconnect Switch

Subcategory: Rotary Disconnect Switch

P1-25/E Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

P1-25/E Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

P1-25/E Features

25A, 3-pole on-off switch-disconnector.
Rated for up to 690V AC operation.
IP65 front protection and NEMA 12 enclosure.
Red thumb grip with yellow front plate.
Suitable for emergency switching off.

P1-25/E Applications

Motor load switching in industrial panels.
Isolation in machine tool control circuits.
Suitable for AC and DC distribution systems.
Used in harsh environments requiring IP65 protection.

P1-25/E FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum operating voltage of the Moeller P1-25/E?

The maximum rated operational voltage is 690 V AC.

What is the operating temperature range of the P1-25/E?

The operating temperature range is -25 °C to +50 °C when open, and -25 °C to +40 °C when enclosed.

What is the rated current of the Moeller P1-25/E?

The rated uninterrupted current (Iu) is 25 A. AC-23A ratings are 25 A at 230 V, 25 A at 400/415 V, 17.4 A at 500 V, and 12.6 A at 690 V. AC-3 ratings are 19.6 A at 230 V, 15.2 A at 400/415 V, 12.1 A at 500 V, and 8.8 A at 690 V.

What is the IP rating of the P1-25/E?

The degree of protection on the front is IP65, and the NEMA rating is 12.

What is the mechanical life of the P1-25/E?

The mechanical life is greater than 300,000 operations.

What is the rated impulse withstand voltage (Uimp)?

The rated impulse withstand voltage is 6 kV.

What is the short-circuit withstand rating of the P1-25/E?

The short-circuit current rating (Icw) is 0.64 kA for 1 second. The conditional short-circuit rating is 50 kA when protected by a 25 A gG/gL fuse.
