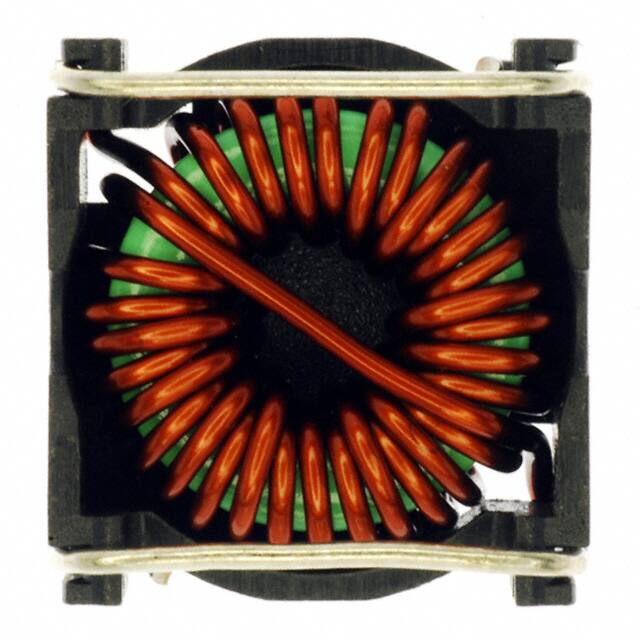

P0846SNL The Pulse Electronics P0846SNL is a toroidal fixed inductor with a 14.8µH inductance and a 5A current rating. It features a surface mount package and a 27mΩ DCR.
Mfr Part #:

P0846SNL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P0846SNL is a toroidal fixed inductor with a 14.8µH inductance and a 5A current rating. It features a surface mount package and a 27mΩ DCR.
✓ Total Stock: 25 pcs
$ Price Range: $0.20

P0846SNL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0846SNL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

P0846SNL Description

Short technical summary and product information.

This Pulse Electronics P0846SNL is a toroidal fixed inductor designed for surface mount applications. It offers a nominal inductance of 14.8µH with a tolerance of ±20% and a rated current of 5A.



The inductor has a low DC resistance (DCR) of 27mΩ, ensuring efficient operation. It is designed to operate within a temperature range of -40°C to +130°C. The component is shielded and comes in a nonstandard package.



This part is tested and recommended by National Semiconductor for the LM267X series of Simple Switcher™ regulators, operating at 260kHz. The base material meets flammability requirements of UL94V-0.



Key mechanical dimensions include a height of 9.91mm (0.390"), a length of 17.78mm (0.700"), and a width of 17.02mm (0.670"). It is available in tape and reel packaging with 200 units per reel.

P0846SNL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics P0846SNL Toroidal Surface Mount Fixed Inductor
Subcategory: Fixed Inductor

P0846SNL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0846SNL Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0846SNL Features

  • 14.8µH nominal inductance with ±20% tolerance.
  • Rated for 5A continuous current.
  • Low 27mΩ maximum DCR.
  • Surface mountable toroidal design.
  • Wide -40°C to 130°C operating temperature.

P0846SNL Applications

  • Designed for National's 260kHz Simple Switcher™.
  • Suitable for LM267X series applications.
  • Used in power supply circuits.
  • Ideal for space-constrained designs.

P0846SNL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the P0846SNL?

The nominal inductance of the P0846SNL is 14.8µH.

What is the current rating for the P0846SNL?

The P0846SNL has a rated current of 5A.

What is the DC resistance (DCR) of this inductor?

The DC resistance (DCR) for the P0846SNL is 27mΩ.

What is the operating temperature range for the P0846SNL?

The operating temperature range is -40°C to +130°C.

What type of inductor is the P0846SNL?

The P0846SNL is a toroidal, shielded, fixed inductor.

What are the dimensions of the P0846SNL?

The P0846SNL has dimensions of 17.78mm (L) x 17.02mm (W) x 9.91mm (H).
