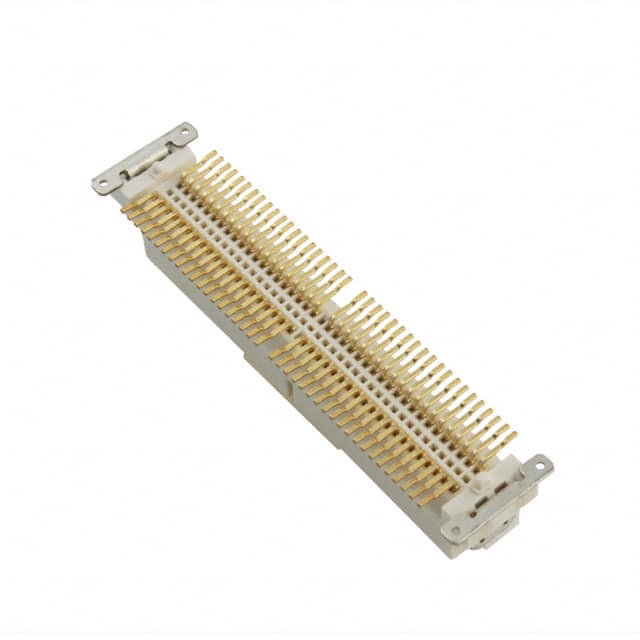

P08-080HLC-E-G The 3M Electronic Solutions P08-080HLC-E-G is a self-mating connector designed for board-to-board applications. It features 80 positions and a 0.80mm pitch.
Mfr Part #:

P08-080HLC-E-G

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The 3M Electronic Solutions P08-080HLC-E-G is a self-mating connector designed for board-to-board applications. It features 80 positions and a 0.80mm pitch.
✓ Total Stock: 140 pcs
$ Price Range: $1.00

P08-080HLC-E-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
140 pcs
On Request
140 pcs On Request 1 On Request On Request 709 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P08-080HLC-E-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

P08-080HLC-E-G Description

Short technical summary and product information.

This 3M Electronic Solutions P08-080HLC-E-G connector is a hermaphroditic, self-mating type designed for mezzanine (board-to-board) applications. It offers 80 positions with a fine pitch of 0.80mm, making it suitable for high-density designs. The connector is designed for surface mount (SMT) termination, facilitating automated assembly processes. It features gold contact plating with a thickness of 8.00µin for reliable conductivity and includes board guide and solder retention features for enhanced mechanical stability during assembly and operation. The height above the board is 8.35mm, with a mated stacking height of 11.5mm, providing specific vertical integration capabilities.



This component is classified under Arrays, Edge Type, Mezzanine (Board to Board) within the Rectangular Connectors category. It is specified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for standard handling and processing conditions. The REACH status is listed as Unaffected.

P08-080HLC-E-G Quick Information

Product Type: Connector
Canonical Name: 3M Electronic Solutions P08-080HLC-E-G Self Mating Connector
Subcategory: Mezzanine Connector

P08-080HLC-E-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P08-080HLC-E-G Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

P08-080HLC-E-G Features

  • 80 positions with 0.80mm pitch.
  • Surface mount termination type.
  • Gold contact finish for conductivity.
  • Board guide and solder retention features.
  • RoHS3 compliant for environmental standards.

P08-080HLC-E-G Applications

  • Ideal for mezzanine board-to-board connections.
  • Suitable for high-density electronic designs.
  • Facilitates automated SMT assembly.
  • Provides specific stacking height integration.

P08-080HLC-E-G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of positions for this connector?

The connector has 80 positions.

What is the pitch of this connector?

The pitch is 0.80mm (0.031 inches).

What mounting type does this connector use?

It uses surface mount technology.

What is the contact finish of this connector?

The contact finish is gold with a thickness of 8.00 microinches (0.203 micrometers).

What is the height above the board?

The height above the board is 8.35mm.

What is the mated stacking height?

The mated stacking height is 11.5mm.
