| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Heating Current | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

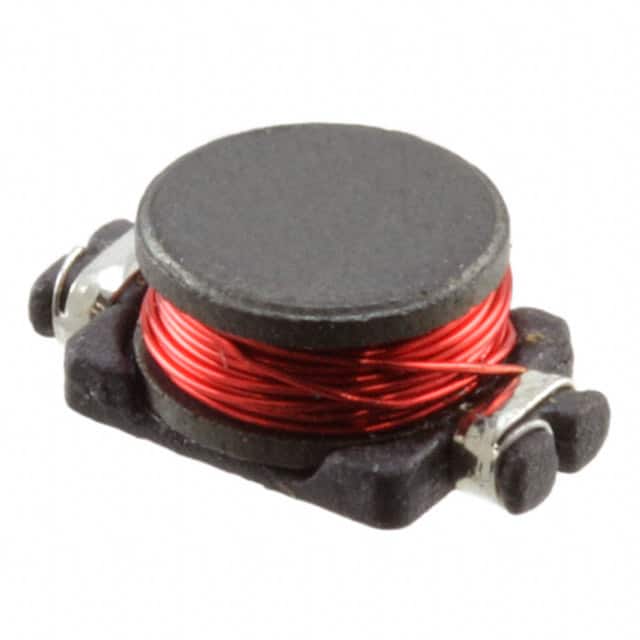

The Pulse Electronics P0770.473NLT is a wirewound, unshielded SMT power inductor from the P0770NL series. It offers an inductance value of 47µH with a tolerance of ±20% and a rated current of 500mA. The maximum DC resistance (DCR) is 640mΩ.
Designed for surface mounting, this inductor has a compact footprint with dimensions of 6.60mm x 4.45mm and a maximum height of 2.92mm. It operates within a temperature range of -40°C to 130°C. The unshielded drum core construction makes it suitable for various electronic applications where space and performance are critical.
This component is RoHS3 compliant and has an MSL rating of 1. It is supplied in tape and reel packaging, with 2500 units per reel, indicated by the 'T' suffix in the part number.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47µH ±20%.
The rated current is 500mA.
The maximum DCR is 640mΩ.
The operating temperature range is -40°C to 130°C.
It uses a surface mount package.
No, it is an unshielded inductor.
The standard package quantity is 2500 units per reel.
