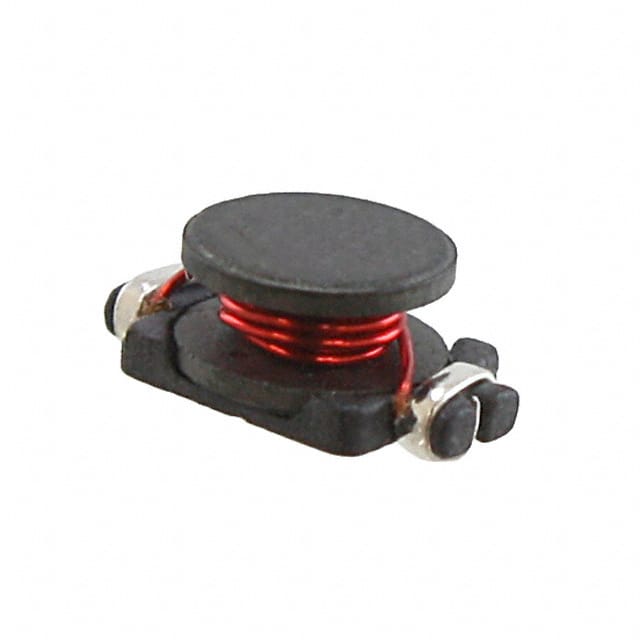

P0770.332NLT The Pulse Electronics P0770.332NLT is a wirewound fixed inductor with a 3.3 µH inductance and a 2A current rating. It features a surface mount package and 80mOhm maximum DC resistance.
Mfr Part #:

P0770.332NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P0770.332NLT is a wirewound fixed inductor with a 3.3 µH inductance and a 2A current rating. It features a surface mount package and 80mOhm maximum DC resistance.
✓ Total Stock: 390 pcs
$ Price Range: $0.20

P0770.332NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
390 pcs
On Request
390 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0770.332NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

P0770.332NLT Description

Short technical summary and product information.

This Pulse Electronics P0770.332NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 3.3 µH with a tolerance of ±20% and can handle a current rating of 2A. The DC resistance is a maximum of 80mOhm.



The inductor operates within a temperature range of -40°C to 130°C and is unshielded. Its dimensions are 6.60mm in length, 4.45mm in width, and 2.92mm in height. The component is classified under RoHS3 compliance and has an MSL rating of 1.



This part is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact surface mount form factor.

P0770.332NLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics P0770.332NLT Wirewound Fixed Inductor
Subcategory: Wirewound

P0770.332NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0770.332NLT Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0770.332NLT Features

  • Wirewound fixed inductor with 3.3 µH inductance.
  • Rated for 2A current with 80mOhm max DCR.
  • Surface mountable for compact designs.
  • Operates from -40°C to 130°C.
  • Unshielded construction for signal integrity.

P0770.332NLT Applications

  • Used in power supply filtering circuits.
  • Suitable for signal processing applications.
  • Ideal for compact electronic devices.
  • Component for DC-DC converters.

P0770.332NLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the P0770.332NLT?

The inductance of the P0770.332NLT is 3.3 µH.

What is the current rating for this inductor?

This inductor has a current rating of 2 A.

What is the maximum DC resistance (DCR) of the P0770.332NLT?

The maximum DC resistance (DCR) is 80mOhm.

What type of mounting is required for this inductor?

This inductor requires surface mount type.

What is the operating temperature range?

The operating temperature range is -40°C to 130°C.
