| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,167 pcs
|
7167 pcs | On Request | 1 | On Request | On Request | 1633+ | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shielding | |
| Standard Package Quantity | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

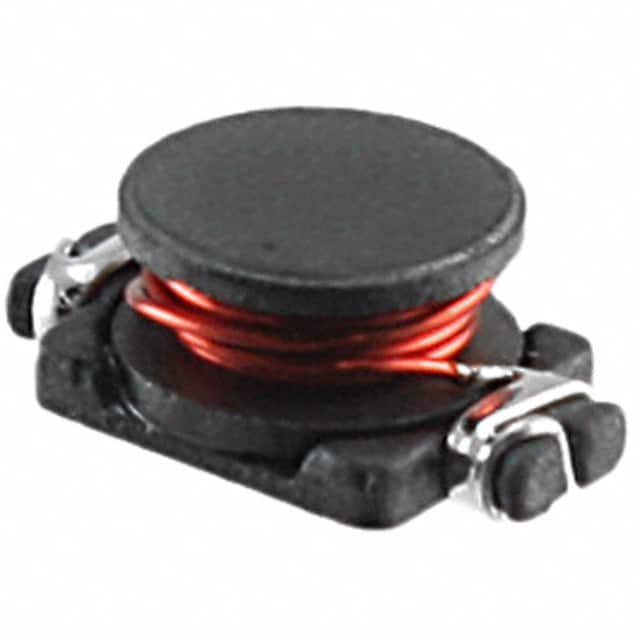

The Pulse P0770.103NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 10 microhenries (uH) with a tolerance of ±20%.
This inductor has a maximum DC current rating of 1.1A and a DC resistance (DCR) of 160mOhms maximum. The operating temperature range is from -40°C to +130°C.
Key mechanical dimensions include a length of 6.60mm (0.260"), a width of 4.45mm (0.175"), and a height of 2.92mm (0.115"). It is unshielded and comes supplied on a reel.
This component is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact SMD package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the P0770.103NLT is 10 uH.
The P0770.103NLT has a maximum DC current rating of 1.1 A.
The DC Resistance (DCR) for the P0770.103NLT is a maximum of 160 mOhms.
The operating temperature range is -40°C to +130°C.
The P0770.103NLT is supplied on a reel in a surface mount package.
