| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,674 pcs
|
2674 pcs | On Request | 1 | On Request | On Request | 1527 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Maximum) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Maximum) |

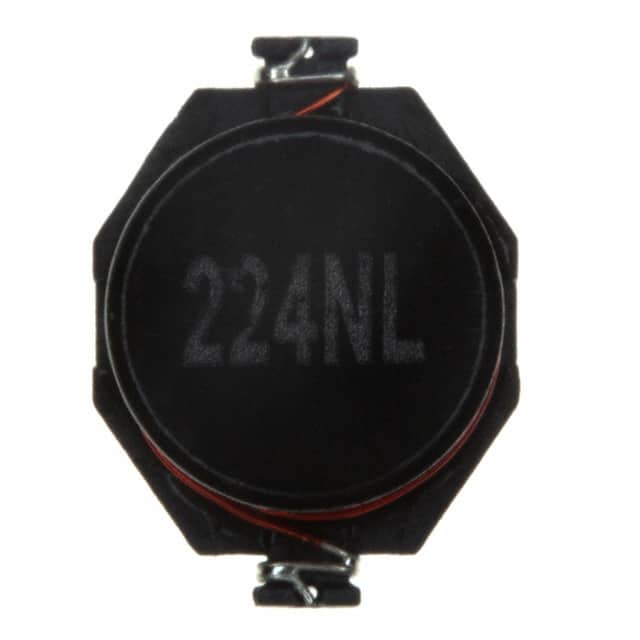

The Pulse P0752.224NLT is a wirewound fixed inductor designed for electronic circuits requiring stable inductance and current handling. It provides an inductance value of 220µH with a tolerance of ±20%, suitable for general-purpose filtering and energy storage applications.
This inductor is rated for a maximum DC current of 800mA and has a maximum DC resistance of 840mOhm. It operates within a temperature range of -40°C to 130°C, ensuring reliability in various environmental conditions. The unshielded construction is typical for many power applications where magnetic field radiation is managed by circuit layout.
Designed for surface mounting, the P0752.224NLT offers convenient integration into printed circuit boards. Its dimensions are 12.95mm in length, 9.40mm in width, and 5.46mm in height. The component is supplied on a reel, facilitating automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 220 µH.
The tolerance is ±20%.
The maximum DC current rating is 800 mA.
The maximum DC Resistance is 840mOhm.
The operating temperature range is -40°C to 130°C.
It is a wirewound fixed inductor.
It is a surface mount component.
