| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Current | |
| Current Rating | |
| Current Rating (Amps) | |
| Current Rating (Maximum) | |
| DC Resistance (DCR) | |
| Factory Pack Quantity | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Maximum) |

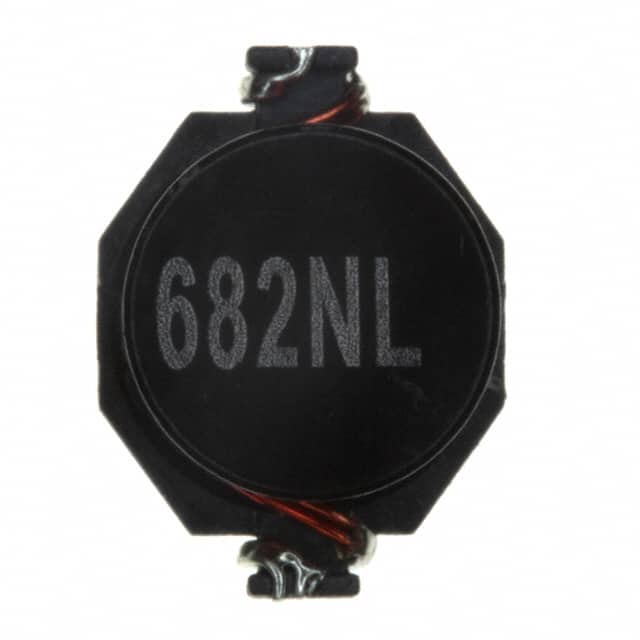

The Pulse P0751.682NLT is a wirewound fixed inductor designed for power applications. It offers an inductance value of 6.8 µH with a tolerance of ±20%. The component is rated for a maximum DC current of 4.6 A and has a DC resistance of 44 mOhm maximum.
This inductor operates within a temperature range of -40°C to +130°C. It is constructed with unshielded wirewound technology and features a surface mount termination style, making it suitable for automated assembly processes. The dimensions are 12.95mm in length, 9.40mm in width, and 5.46mm in height.
The P0751.682NLT is packaged on a reel and is designed for power applications. Its specifications make it a reliable choice for various electronic circuits requiring stable inductance and current handling capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 6.8 µH.
The tolerance is ±20%.
The maximum DC current rating is 4.6 A.
The operating temperature range is -40°C to +130°C.
It uses surface mount.
It is packaged on a reel.
