| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
340 pcs
|
340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency (Test) | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

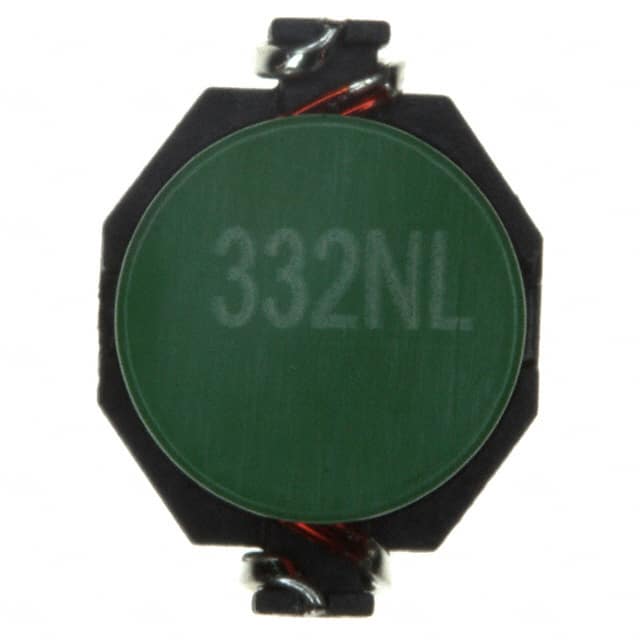

This Pulse Electronics P0751.332NLT is a wirewound fixed inductor offering a nominal inductance of 3.3µH with a tolerance of ±20%. It is rated for a current of 5.4A and has a maximum DC resistance of 18mOhm.
The inductor operates within a temperature range of -40°C to 130°C and features an unshielded construction. Its dimensions are 12.95mm in length, 9.40mm in width, and 5.46mm in height, making it suitable for surface mount applications.
The P0751NL series inductor is designed for various electronic applications requiring stable inductance and current handling capabilities. Its robust construction and specified parameters make it a reliable component for power supply circuits, filtering, and signal processing.
Key specifications include a saturation current of 6.4A and a self-resonant frequency test at 100 kHz. The component is classified under RoHS3 compliance and is unaffected by REACH regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 3.3 µH.
The current rating is 5.4 A.
The maximum DC resistance is 18 mOhm.
The operating temperature range is -40°C to 130°C.
It uses a nonstandard surface mount package.
