| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
693 pcs
|
693 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

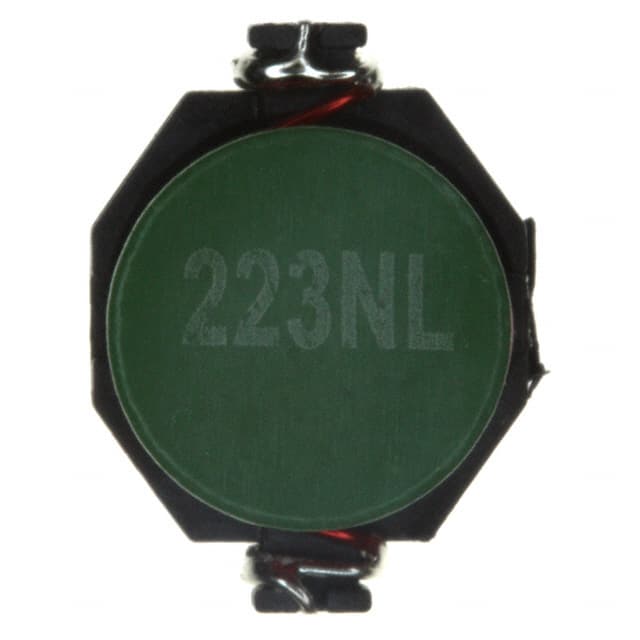

This Pulse Electronics P0751.223NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 22µH with a tolerance of ±20% and can handle a current rating of 2.6A. The maximum DC resistance (DCR) is 114mOhm.
The operating temperature range for this component is -40°C to 130°C. Its dimensions are 12.95mm in length, 9.40mm in width, and 5.46mm in height. The inductor is unshielded.
This part is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact surface mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the P0751.223NLT is 22 µH.
The current rating for the P0751.223NLT is 2.6 A.
The maximum DC resistance (DCR) is 114mOhm.
The operating temperature range is -40°C to 130°C.
The P0751.223NLT is a wirewound, unshielded, fixed inductor.
The dimensions are 12.95mm in length, 9.40mm in width, and 5.46mm in height.
