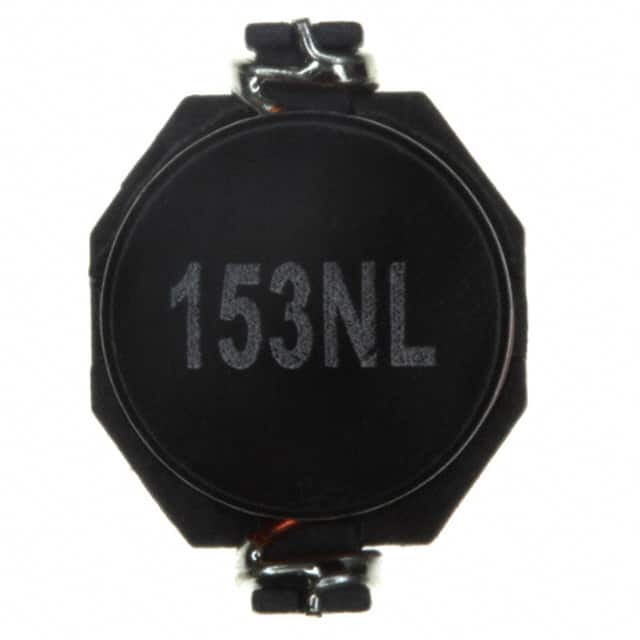

P0751.153NLT This Pulse Electronics P0751.153NLT is a wirewound fixed inductor with 15µH inductance and a 3A current rating. It features a surface mount package.
Mfr Part #:

P0751.153NLT

Available from 3 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
This Pulse Electronics P0751.153NLT is a wirewound fixed inductor with 15µH inductance and a 3A current rating. It features a surface mount package.
✓ Total Stock: 8,306 pcs
$ Price Range: $0.20

P0751.153NLT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
7,840 pcs
On Request
7840 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
166 pcs
On Request
166 pcs On Request 1 On Request On Request 1331+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0751.153NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

P0751.153NLT Description

Short technical summary and product information.

The Pulse Electronics P0751.153NLT is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 15 µH with a tolerance of ±20% and a maximum DC resistance of 55 mOhm.



This component is rated for a current of 3A and operates within a temperature range of -40°C to 130°C. The inductor is unshielded and has a nonstandard package size, with dimensions of 12.95mm in length, 9.40mm in width, and 5.46mm in height.



Its RoHS3 compliant status and MSL 1 rating make it suitable for various electronic designs requiring reliable inductive components.

P0751.153NLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics P0751.153NLT Wirewound Fixed Inductor
Subcategory: Fixed Inductor

P0751.153NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0751.153NLT Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0751.153NLT Features

  • Wirewound construction for fixed inductance.
  • 15 µH inductance with ±20% tolerance.
  • Rated for 3A current with 55mOhm max DCR.
  • Surface mountable for PCB integration.
  • Operates from -40°C to 130°C.

P0751.153NLT Applications

  • Suitable for power supply filtering.
  • Used in DC-DC converter circuits.
  • Ideal for signal conditioning tasks.
  • Applicable in general electronic circuits.

P0751.153NLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance value of the P0751.153NLT?

The inductance value is 15 µH with a tolerance of ±20%.

What is the maximum current rating for this inductor?

The P0751.153NLT has a maximum current rating of 3A.

What is the DC resistance (DCR) of the P0751.153NLT?

The maximum DC resistance is 55 mOhm.

What is the operating temperature range for this Pulse Electronics inductor?

This inductor operates within a temperature range of -40°C to 130°C.

How is the P0751.153NLT mounted?

The P0751.153NLT is designed for surface mount.
