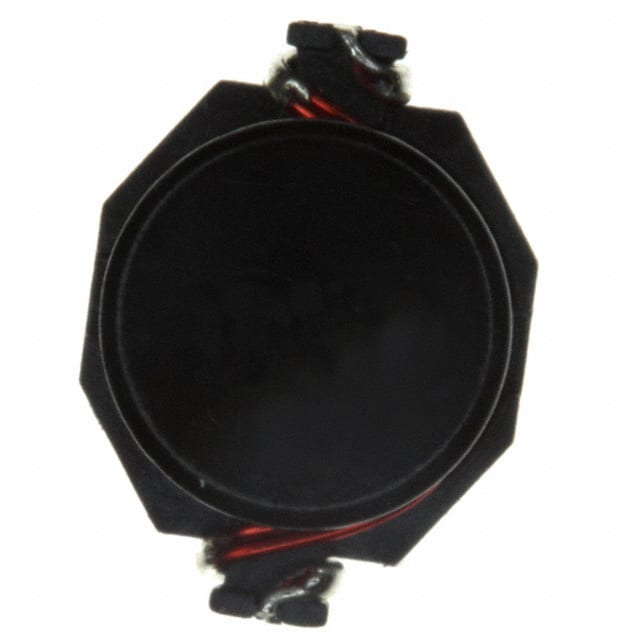

P0751.102NLT The Pulse Electronics P0751.102NLT is a wirewound fixed inductor offering 1µH inductance and a 6.8A current rating. It features a low DC resistance of 10mOhm Max and is designed for surface mounting.
Mfr Part #:

P0751.102NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P0751.102NLT is a wirewound fixed inductor offering 1µH inductance and a 6.8A current rating. It features a low DC resistance of 10mOhm Max and is designed for surface mounting.
✓ Total Stock: 57 pcs
$ Price Range: $0.20

P0751.102NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0751.102NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

P0751.102NLT Description

Short technical summary and product information.

This Pulse Electronics P0751.102NLT is a wirewound fixed inductor with a nominal inductance of 1µH and a tolerance of ±20%. It is rated for a current of 6.8A, with a maximum DC resistance of 10mOhm. The inductor operates within a temperature range of -40°C to 130°C.



Designed for surface mounting, this unshielded inductor has a nonstandard package size. Its dimensions are approximately 12.95mm in length, 9.40mm in width, and 5.46mm in height. The part is specified with a Moisture Sensitivity Level (MSL) of 1 Unlimited and is RoHS3 compliant.



This component is suitable for applications requiring stable inductance under moderate current loads and operating temperatures. Its surface mount design facilitates automated assembly processes.

P0751.102NLT Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics P0751.102NLT Wirewound Fixed Inductor
Subcategory: Wirewound

P0751.102NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0751.102NLT Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0751.102NLT Features

  • Wirewound construction for stable inductance.
  • 1µH inductance with ±20% tolerance.
  • Rated for 6.8A current with low DCR.
  • Surface mountable for automated assembly.
  • Wide operating temperature range.

P0751.102NLT Applications

  • Used in power supply filtering circuits.
  • Suitable for DC-DC converter applications.
  • Ideal for signal line impedance matching.
  • Applicable in general electronic circuits.

P0751.102NLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the Pulse Electronics P0751.102NLT?

The inductance is 1 µH with a tolerance of ±20%.

What is the current rating for the P0751.102NLT inductor?

The current rating is 6.8A, with a maximum DC current of 9A.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance is 10mOhm.

What are the operating temperature limits for the P0751.102NLT?

The operating temperature range is -40°C to 130°C.

How is the P0751.102NLT mounted?

This inductor is designed for surface mounting.
