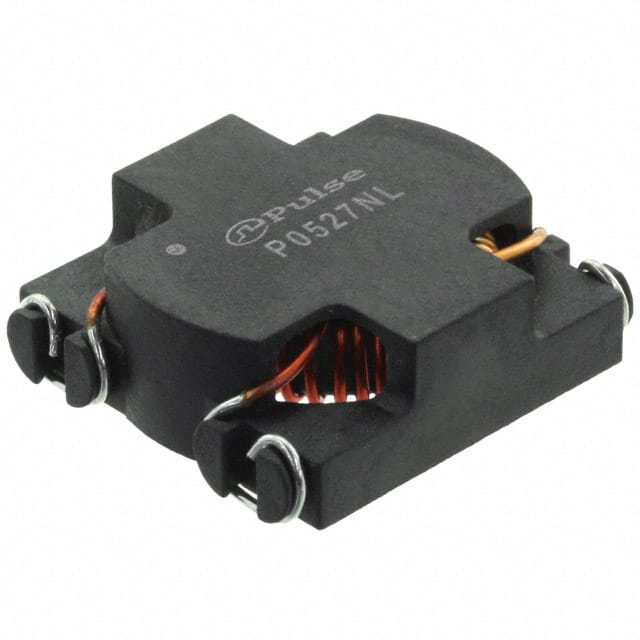

P0527NLT The Pulse Electronics P0527NLT is a common mode choke designed for power line filtering. It features a 7.2A current rating and a Surface Mount package.
Mfr Part #:

P0527NLT

Available from 4 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P0527NLT is a common mode choke designed for power line filtering. It features a 7.2A current rating and a Surface Mount package.
✓ Total Stock: 708 pcs
$ Price Range: $0.99

P0527NLT Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0527NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

P0527NLT Description

Short technical summary and product information.

The Pulse Electronics P0527NLT is a common mode choke with a current rating of 7.2A and a maximum DC resistance of 15mOhm. It operates within a temperature range of -40°C to 120°C and has 2 lines.



This choke is designed for surface mounting and comes in a horizontal, 4 PC Pad package. Its dimensions are 28.19mm in length, 25.40mm in width, and a maximum height of 10.04mm. The RoHS status is compliant, and the Moisture Sensitivity Level is 1 Unlimited.



This component is suitable for power line filtering applications where noise suppression is critical. Its surface mount design allows for easy integration into automated assembly processes.

P0527NLT Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics P0527NLT Common Mode Choke
Subcategory: Common Mode Choke

P0527NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0527NLT Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0527NLT Features

  • Rated for 7.2A maximum current.
  • Low DC resistance of 15mOhm.
  • Operates from -40°C to 120°C.
  • Surface mountable for automated assembly.
  • Designed for power line filtering.

P0527NLT Applications

  • Suitable for common mode noise filtering.
  • Used in power supply line filtering.
  • Ideal for EMI suppression in electronic devices.
  • Applicable in industrial equipment for signal integrity.
  • Designed for high-current filtering applications.

P0527NLT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum current rating for the P0527NLT?

The maximum current rating is 7.2A.

What is the DC resistance (DCR) of the P0527NLT?

The maximum DC resistance is 15mOhm.

What is the operating temperature range for this common mode choke?

The operating temperature range is -40°C to 120°C.

How many lines does the P0527NLT have?

It has 2 lines.

What type of mounting is required for the P0527NLT?

It requires Surface Mount.

What is the package type of the P0527NLT?

The package type is Horizontal, 4 PC Pad.

What is the RoHS status of the P0527NLT?

The RoHS status is RoHS3 Compliant.

P0527NLT Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
P0527NL
P0527NL
Pulse Electronics
The Pulse Electronics P0527NL is a common mode choke designed for power line applications. It features a 7.2A current rating and a Surface Mount package.
View Part
